DIY PCB Apple LGA60 E2NAND Hynix ENAND FLASH DIY U Disk
Posting date : Aug 02, 2017
Membership
Free Member Scince Aug 02, 2017
FOB Price
2.99
Min. Order Quantity
1
Supply Abillity
100000
Port
test
Payment Terms
3days
Package
4cmx2cmx1cm
Keyword :
Category
Contact
yonghui
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
vipprog
Model Number
VC945
HS-CODE
1702-60
Package & Delivery Lead Time
Package
4cmx2cmx1cm
Detailed Description

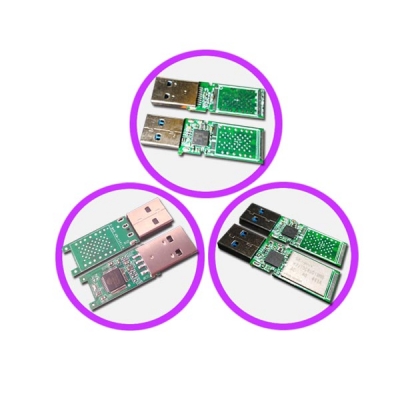

UFD PCBA for Apple Skhynix ENAND FLASH, Hynix E2NAND GTA USB FLASH DRIVE PCBA, This LAG60 DIY USB FLASH DRIVE PCBA can be applied to some Skhynix ENAND FLASH (used on iphone 5-6p), and can't be used in Toshiba and Sandisk ENAND FLASH.

DIY PCB Apple LGA60 E2NAND Hynix ENAND FLASH DIY U Disk

                          ( Optional 1: USB 2.0 )                                                  (Optional 2: USB 3.0)Help you recycle Apple E2NAND chips, this UFD PCBA board can help your broken / used Apple E2NAND to be new U disk.

working on H2JTDG8UD1BMS and H2JTDG8UD2MBR E2NAND Flash (H2J***** series), and can working on used Skhynix E2NAND ( iphone 5-6p).

Note:  before iPhone 4S,  it is NAND Flash, after 4s to 6P, Apple adopt ENAND FLASH or E2NAND (LGA60 Package), after iphone 7, adopt LAG70 package Flash.

1: just supported used E2NAND Flash (Skhynix )2: not supported used E2NAND Flash ( Sandisk and Toshiba )3: USB 2.0 and USB 3.0 optional,  USB 2.0 just support one Flash, USB 3.0 support two Flash.4.Not apply to common LGA60.

E2NAND 3.0 uses advanced error correction code (ECC), buffering, and processing to improve performance and reliability. The flash controller is centred on the eight-die flash stack in order to maintain timing symmetry. Die centring requires mounting the controller under the flash stack in order to maintain workable wirebond lengths. The NAND flash is manufactured in Hynix's 21-nm process, which it designates "2ynm class."

only working on some SKhynix ENAND Flash of iphone 5-6p. Such as H2JTDG8UD1BMS, H2JTEG8vD2MBR( tested working ). and other Skhynix Part Number are not actually tested.
