Black Iron Pipe Fittings Wholesale Fig. 372
China [CN] A Black Iron union tail is a detachable fitting used for accessory replacement. It’s part of a union and typically consists of a male tail, a female head, and a union nut. These components allow for easy disassembly and reassembly. They’re commonly used in plumbing and pipework applications for water, oil, gas, and petro-chemical systems.
The material used for these union tails is often malleable cast iron, which ensures high mechanical properties. The best mechanical properties of the material are KTH330-08 malleable cast iron. All standards exceed international regulations.
Jianzhi’s union tail has a high standard; it can be used on our Jianzhi pipe unions without any problems. Our plumbing fittings wholesale ensure high quality from the raw material. Jianzhi’s black malleable fittings with the high quality helps our customers win the market.
We use an electric furnace for melting, and its stability can ensure 100% qualified material. After casting, the pipe fittings black are specially kept at a temperature of 95 °C, i.e., slow and uniform cooling occurs. This leads to a decrease in internal stresses and an increase in tensile strength, so pipe fittings are not prone to breakage. The pipe thus obtains better plasticity and can be used in high pressure and high temperature environments.

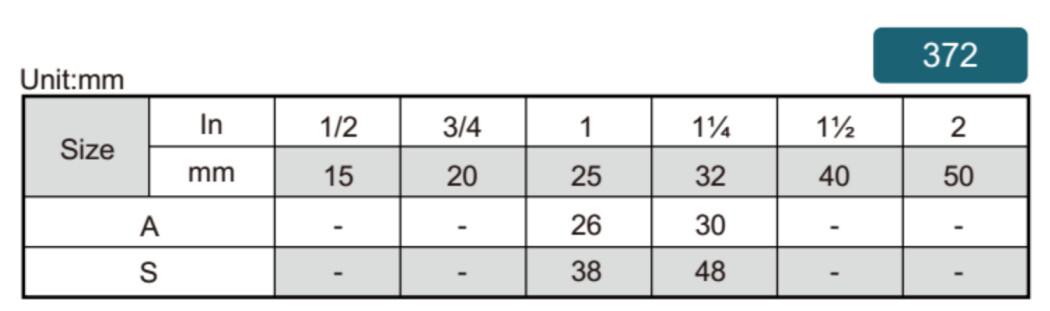

Size： | 1/8”-6”(DN6-DN150) |
Standard: | EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242 |
Threaded Standard: | EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226 |
Work Pressures： | PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar |
Certification： | UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI |
Maximum Pressure: | 25 BAR (363PSI) (2.5MPA) CLASS 150 |
Maximum Temperature: | 200°C (392°F) |
Tensile Strength: | 350MPA |
Hardness: | HB150 (Brinell) |
Elongation Rate: | 10% |
Suitable Applications: | Water, Oil, Gas, Petro-Chemical |
Material: | Malleable Iron |
Click enlarge Image
