Foam-Flex Series High-Performance Flexible Low Loss Microwave Coaxial Cable

본문 바로가기


Home > Product > Foam-Flex Series High-Performance Flexible Low Loss Microwave Coaxial Cable
Product
Foam-Flex Series High-Performance Flexible Low Loss Microwave Coaxial ...
Posting date : Jun 04, 2026
Membership
Free Member Scince May 21, 2026
FOB Price
$1.33/ m
Min. Order Quantity
1000 meter
Supply Abillity
1000000meter
Port
Shanghai
Payment Terms
EXW
Package
strand
Keyword :
Category
Contact
Emma Bai
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Bing Wire & Cable
Model Number
Foam-Flex034,Foam-Flex047,Foam-Flex086,Foam-Flex141,Foam-Flex250
HS-CODE
8544-20
Package & Delivery Lead Time
Package
strand
Delivery Lead Time
15-25
Specifications

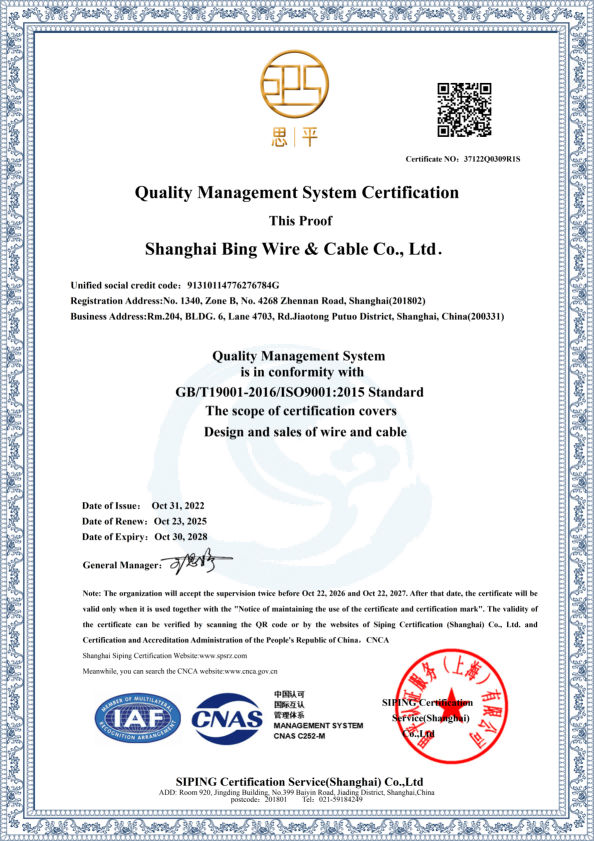

Type of Certification
Quality Management System Certification
Reference no.
Certificate NO:37122Q0309R1S
Name.
GB/T19001-2016/ISO9001:2015 Standard
Issued By
SIPING Certification Service(Shanghai) Co.,Ltd
Start Date (validity period)
2025-10-23
End Date (validity period)
2028-10-31
Scope
The scope of certification covers Design and sales of wire and cable

Detailed Description

Product Overview

Foam-Flex 047 is foam-core low-loss flexible microwave coaxial cable with FEP outer jacket, overall outer diameter 1.48mm, 28AWG conductor construction. It follows universal industry dimensional standards and is compatible with mainstream RF connectors: SMA, 2.92mm, 2.4mm, 1.8mm, 1.0mm etc.
The cable adopts double-layer composite shielding: spiral-wrapped silver-plated copper strip (100% full coverage shielding) plus outer silver-plated copper braided shield, enabling repeated flexing while reaching outstanding shielding effectiveness over -100dB @1GHz. Its electrical performance matches MIL-DTL-17 semi-rigid cable, yet owns excellent flexible property same as RG flexible wire, and can directly replace traditional semi-rigid / semi-flex coaxial cables with standard semi-rigid connectors. Core insulation is low-density foamed PTFE (LD-PTFE), greatly reducing dielectric loss and cable weight for low-loss high-frequency transmission.

Core Product Features

  •  Ultra-low signal leakage & ultra-low VSWR, minimum signal reflection & power loss
  •  True flexible design, withstand repeated dynamic bending without performance drift
  •  Excellent mechanical phase & amplitude stability after frequent bending
  •  Standard semi-rigid connector compatibility for easy assembly
  •  Superior shielding efficiency>-100dB@1GHz, strong anti-EMI capability
  •  High mechanical durability for harsh ambient working condition
  •  Lightweight construction compared with conventional solid PTFE semi-rigid cables

Typical Application Fields

  • Defense Electronics: Military radar, communication & EW system interconnect
  • Test & Measurement: Network/signal analyzer, high-frequency test bench jumper
  • Wireless Telecommunication: Base station, RF front-end & microwave link assembly
  • Medical Electronic Equipment: RF therapeutic & diagnostic instruments
  • Board-to-Board Interconnection for compact RF modules
  • Cabinet internal jumper wiring
  • Low-PIM application cables for communication system
