RF Series Minature Coaxial Cable--RF0.81, RF1.13, RF1.32, RF1.37, RF1.48

본문 바로가기


Home > Product > RF Series Minature Coaxial Cable--RF0.81, RF1.13, RF1.32, RF1.37, RF1.48
Product
RF Series Minature Coaxial Cable--RF0.81, RF1.13, RF1.32, RF1.37, RF1....
Posting date : May 28, 2026
Membership
Free Member Scince May 21, 2026
FOB Price
$3.33/ m
Min. Order Quantity
500 meter
Supply Abillity
1000000meter
Port
Shanghai
Payment Terms
EXW
Package
strand
Keyword :
Category
Contact
Emma Bai
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Bing Wire & Cable
Model Number
RF series Minature Coaxial Cable
HS-CODE
8544-20
Package & Delivery Lead Time
Package
strand
Delivery Lead Time
15-25
Specifications

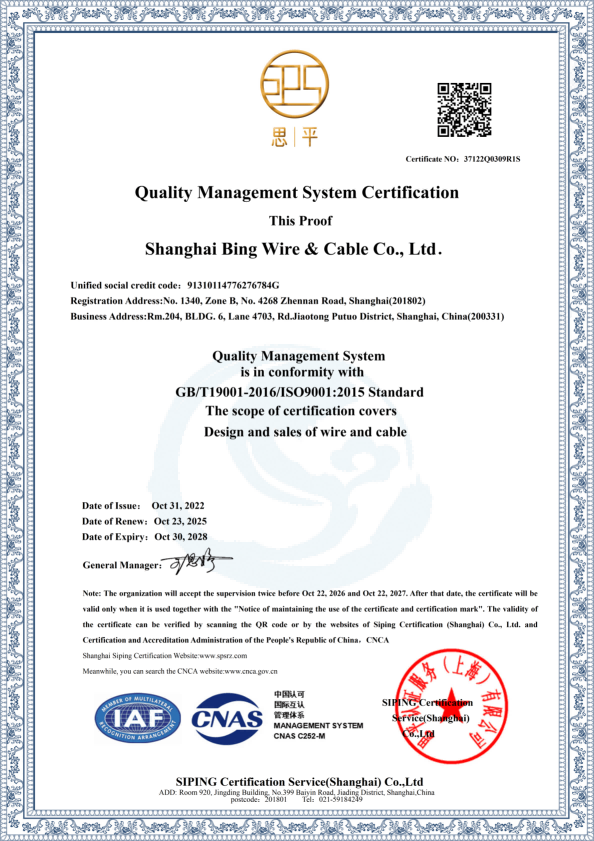

Type of Certification
Quality Management System Certification
Reference no.
Certificate NO:37122Q0309R1S
Name.
GB/T19001-2016/ISO9001:2015 Standard
Issued By
SIPING Certification Service(Shanghai) Co.,Ltd
Start Date (validity period)
2025-10-23
End Date (validity period)
2028-10-31
Scope
The scope of certification covers Design and sales of wire and cable

Detailed Description

Product Introduction

Our RF Series Ultra-Thin Coaxial Cables (including RF0.81, RF1.13, RF1.32, RF1.37, RF1.48) are high-performance, miniature RF interconnect solutions. Designed for compact, high-frequency applications, these cables combine excellent flexibility, durability, and signal integrity.

Core Features

  • Superior Flexibility & Bend Resistance: Engineered to withstand repeated bending without performance degradation, ideal for tight spaces and moving applications.
  • High Durability: Corrosion-resistant, flame-retardant, and aging-resistant construction ensures long-term reliability in harsh environments.
  • Stable Signal Performance: Optimized design improves data transmission accuracy and stability for high-frequency signals.
  • Ultra-Compact Form Factor: Small outer diameters make them perfect for space-constrained consumer electronics and medical devices.
LayerParameterRF0.81RF1.13RF1.32RF1.37RF1.48
Inner ConductorMaterialSilver-plated Copper WireSilver-plated Copper WireSilver-plated Copper WireSilver-plated Copper WireSilver-plated Copper Wire
Structure (No./mm)7/0.057/0.087/0.087/0.1021/0.16
Nominal Diameter (mm)0.150.240.240.3060.16
Dielectric (Insulation)MaterialFEPFEPFEPFEPFEP
Nominal Insulation Thickness (mm)0.130.220.210.290.34
Minimum Insulation Thickness (mm)0.110.200.190.260.32
Nominal Diameter (mm)0.400.680.660.890.84
ColorNaturalNaturalNaturalNaturalNatural
ShieldMaterialSilver/Tin-plated Copper WireSilver/Tin-plated Copper WireSilver/Tin-plated Copper WireSilver/Tin-plated Copper WireSilver/Tin-plated Copper Wire
Structure0.05mm Wire, Single Braid0.05mm Wire, Single Braid0.05mm Wire, Double Braid0.05mm Wire, Single Braid0.08mm Wire, Single Braid
Shielding Density (%)959591 + 939595
JacketMaterialFEPFEPFEPFEPFEP
Nominal Thickness (mm)0.110.120.120.110.15
Minimum Thickness (mm)0.090.100.100.090.10

Typical Applications

These ultra-thin coaxial cables are widely used in:
  • Consumer Electronics: Mobile phones, laptops, digital cameras
  • Navigation & Positioning: GPS receivers and tracking systems
  • Medical Devices: Ultrasound equipment and diagnostic instruments
  • High-Frequency Interconnects: Compact RF modules and test equipment
