Product Description

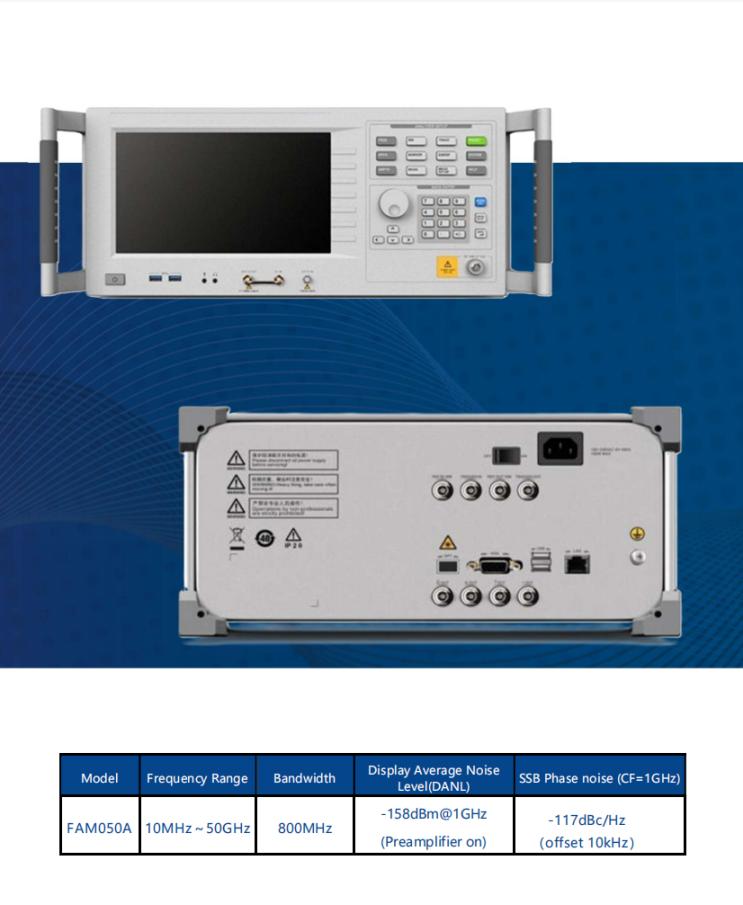

USPACE&EAGLE FAM series signal and spectrum analyzer not only provides excellent RF performance, but also a standard
analysis bandwidth of 800MHz , which can demodulate multiple communication standard signals (such as WCDMA, NB-IOT, LTE, NR-5G). I/Q develop interface can be opened for special application requirements.
USPACE&EAGLE FAM series signal and spectrum analyzer provides a three-year warranty service, and ultra-low maintenance costs.
The platform adopts high-performance x86 architecture and the host is equipped with Windows10 operating system. The platform is equipped with high reliability solid-state drive, high-resolution screen, and excellent human-computer interaction performance.
Frequency Range
10MHz-50GHz
Digital Signal
1.Provide WCDMA, LTE, NB_IOT, NR_5G, 5GNR CPE demodulation and analysis
2.Provide ASK, FSK, QPSK, 256QAM vector signal demodulation and analysis
3.At 1GHz frequency, LTE 64QAM demodulation EVM is under 1%
4.Provide IQ analysis, 18 million IQ sampling points, with a maximum sampling rate of 983.04 MSa/s DANL
Excellent DANL performance, minimum -158dBm/ Hz@1GHz (Preamplifier on)
RF characteristics
1.Display average noise level DANL minimum -158dBm/Hz
(at 1GHz, minimum attenuation, Pre-amplifier on, typical )
2.Frequency Initial Accuracy<0.04ppm
3.Analysis bandwidth 800MHz
4.SSB Phase noise -117dBc/Hz (CF=1GHz,offset 10kHz, 20 ºC ~30 ºC)
5.Support temperature self-calibration function
Services
1.24-hour after-sales service hotline
2.3-year warranty and ultra-low maintenance costs
3.Provide Chinese or English operation interface
