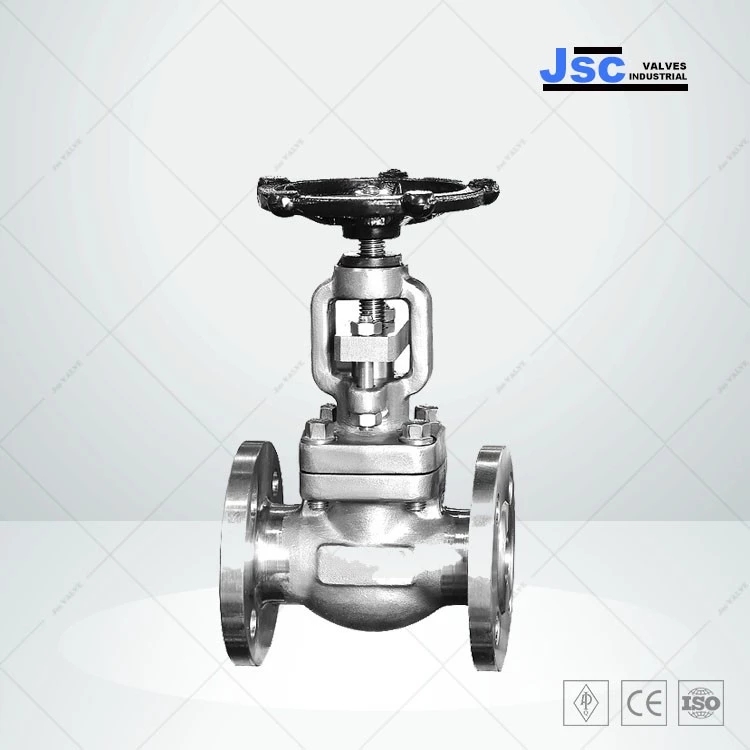

Integral Flanged Forged Globe Valve

As a reputable supplier of integral flanged forged globe valves, we provide a comprehensive range crafted from alloy, carbon, and stainless steel. Our valves cover sizes from 1/2 to 3 inches and are suitable for Class 150-4500 LB applications. Designed in accordance with API 602, ASME B16.34, BS 5352, and DIN 3352 standards, our integral flanged forged globe valves offer reliable performance across various applications.

There are three cover designs for Forged Steel globe valves. The first one is a bolted bonnet, the valve body and valve bonnet are connected by bolts and nuts, and the spiral wound gasket (made of 316 clip flexible graphite) is sealed. Metal ring connection can also be used when customers have special requirements. The second design form of forged steel globe valve is welded bonnet. According to this design form of valve, the valve body and valve bonnet are connected by thread and sealed by full welding. Full penetration connection can also be used when customers have special requirements. The third type is the pressure seal bonnet. According to this design form, the valve body and valve bonnet are connected by thread and sealed by internal pressure self sealing ring.

Integral Flanged Forged Globe Valve China Suppier Design structure and features

Applicable Standard
Design Standard: API 602, ASME B16.34, BS 5352, DIN 3352
Face to Face: ASME B16.10, EN 558, DIN 3202
End Flange: ASME B16.5, DIN 2533
Butt welding Ends: ASME B16.25, DIN 3239
Socket Welded Ends: ASME B16.11
Threaded Ends: ASME B1.20.1
Inspection and Test: API 598, DIN 3202

Products Range
Size: 1/2-3 Inch (DN15-DN80)
Rating: ANSI Class 150-4500 LB
Body Materials: ASTM A105, ASTM A350 LF2, ASTM A182 F9, F11, F22, F304, F304L, F316, F316L, F321, F51, Alloy Steel, etc.
