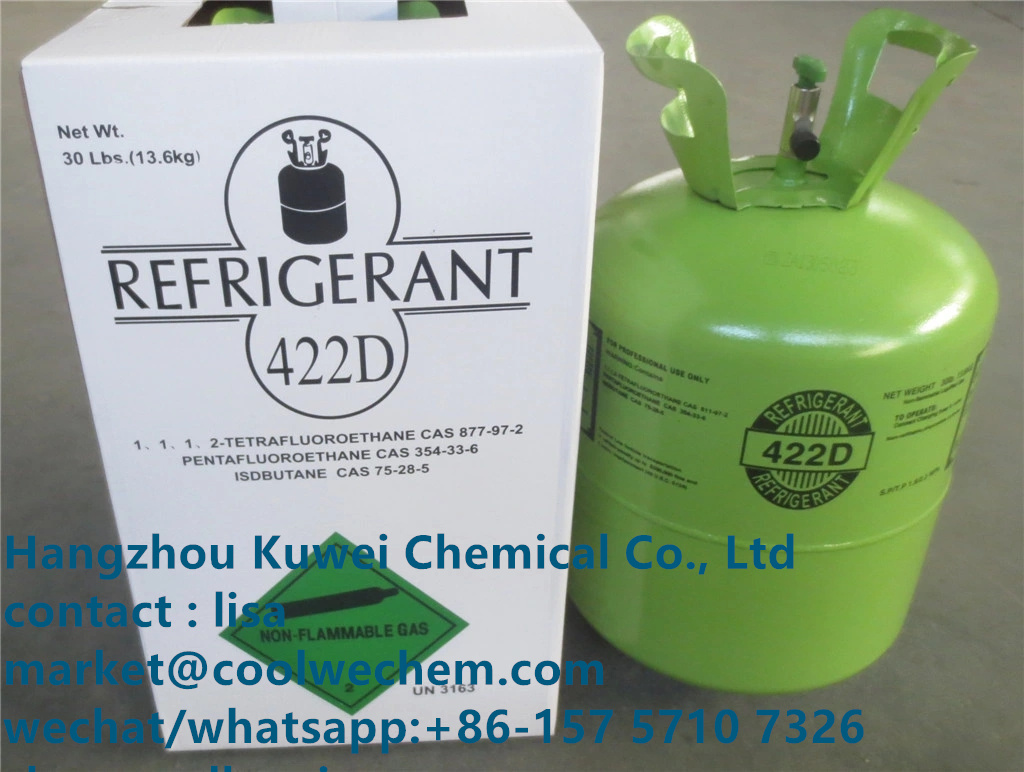

refrigerant gas R422d
0 likes
China [CN] R-422D will show a drop in capacity compared to R-22,which usually translates into slighty increased run times in a properly sized system.Some system conponents may need to be changed if excess pressure drop debelops.
The hydrocarbon component in R-422D helps promote oil return in systems containing mineral oil or alkylbenzene.Although HFC refrigerants won't mix with these oils,the hydrocarbon addition thins the oil and keeps it moving around the loop.More complicated piping arrangements or large hold-up volumes may still require some oil be changed to POE.
Physical property:
critical temperatureºC | 45 |
Vapor pressure MPA | 0.600 |
Vapor density(Air=1.0) | 2.4 |
ODP(HFC-11=1) | 0 |
GWP(CO2=1) | 2624 |
LIQUID DG | |
Quality Index
appearance | colorless and clear |
purity,%≥ | 99.8 |
moisture,%≤ | 0.0010 |
acidity(in HCL),%≤ | 0.0001 |
evaporated residue,%≤ | 0.01 |
odor | odorless |
