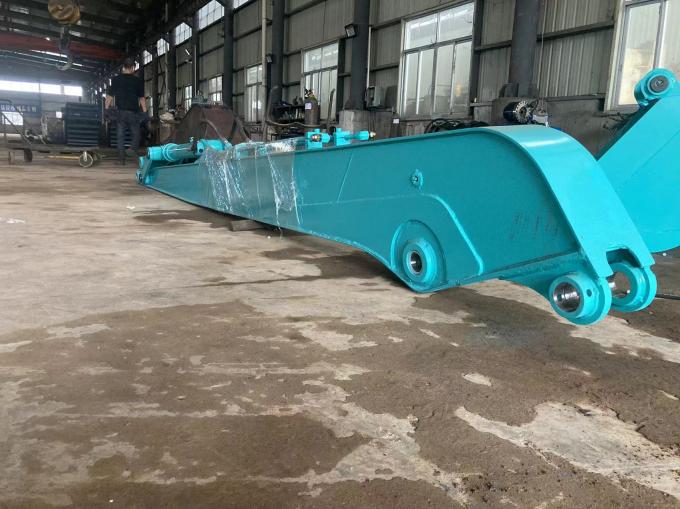

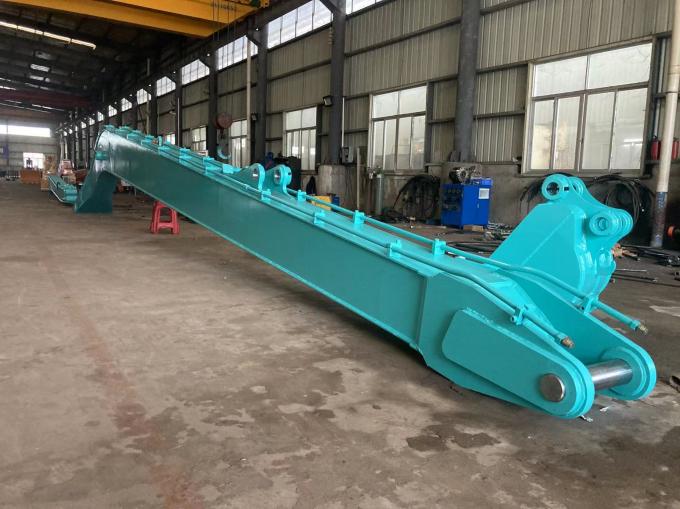

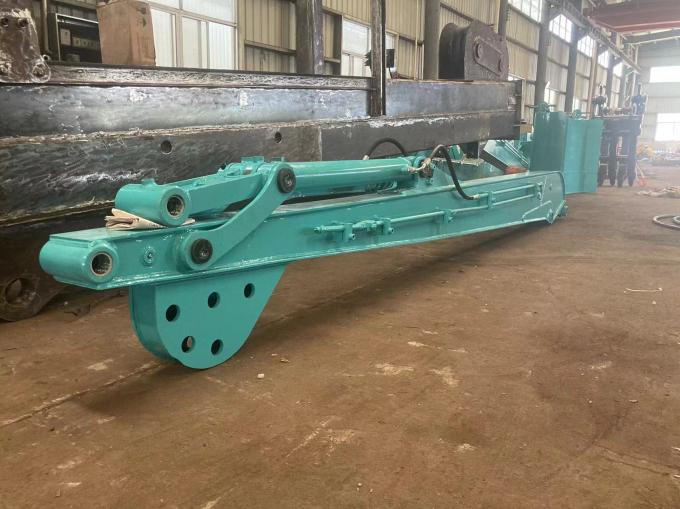

10-12M Two Section Excavator Boom Arm Wear Resistant For PC220-6
0 likes
China [CN] 10-12 Meters Long Excavator Long Reach Boom and Stick Arm for Pc220-6 Made by Zhonghe Machinery
The Parameter of hydraulic excavator long arm
| Excavator Ton | Total Length(mm) | (A)Boom(mm) | (B)Arm(mm) | Maximum Digging Radius(mm) | Maximum Digging Depth(mm) | Maximum Unloading Height(mm) | Maximum Digging Height(mm) | Bucket Volume(cbm) | Cylinder(ton) |
| 11-15T | 13000 | 7250 | 5750 | 11200 | 9000 | 7550 | 9350 | 0.15-0.3 | 12T |
| 20-25T | 15400 | 8220 | 7180 | 14500 | 11300 | 10400 | 12600 | 0.4-0.6 | 12T |
| 20-30T | 18000 | 10000 | 8000 | 17300 | 13000 | 17200 | 14000 | 0.4-0.7 | 12T |
| 35-40T | 20000 | 11000 | 9000 | 19200 | 14900 | 12900 | 15200 | 0.6-1.2 | 12T |
| 40-45T | 22000 | 12000 | 10000 | 21300 | 16000 | 14000 | 17000 | 0.5-1 | 20T |
| 40-50T | 24000 | 13000 | 11000 | 23000 | 17900 | 15200 | 18100 | 0.5-1.1 | 20T |
USES of long boom arm:
It is mainly suitable for earthwork foundation and deep cutting excavation.
Applied to municipal engineering such as
Construction of port
Dredging of the river
Reservoir clean
Subway construction
The excavation of the building foundation
Wide operation range, high efficiency, high safety
