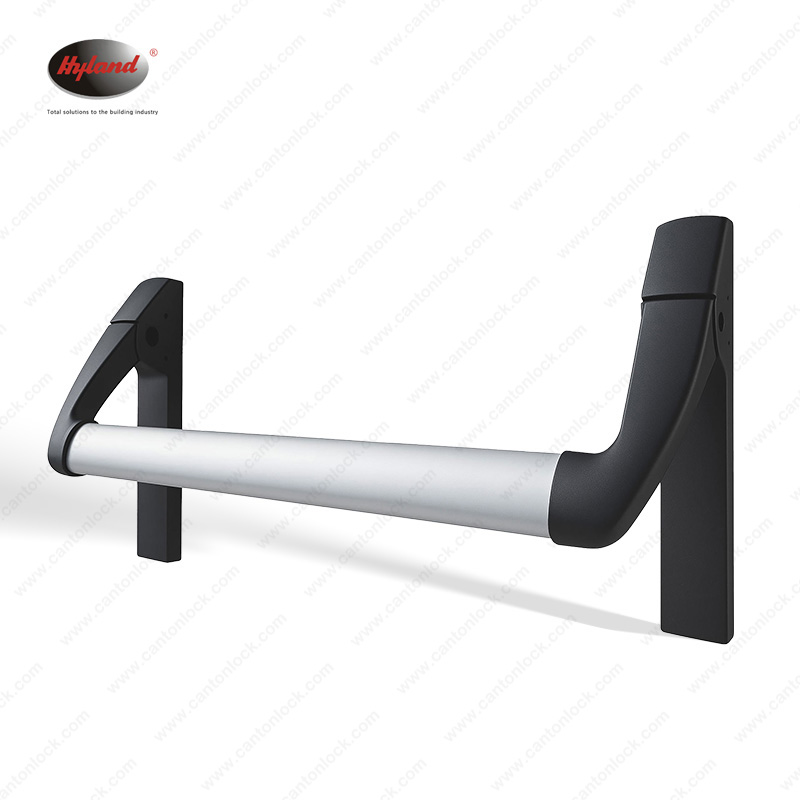

307 Push Bar Panic Exit Lock + Fire Rated Door Security Device + CE Certified
0 likes
China [CN] Used: Fire Door
Material: anti-fire material aluminum
Door Thickness: 35-55mm
Size: 1000mm standard
Packing: White or Color Box
Type: Push Bar
Sample: Available
OEM: YES
1. Function:
The Aim door lock features a double-cylinder, double-throw mechanism. The deadbolt and latch bolt provide triple-security functions to prevent prying the door open, unauthorized internal unlocking without a key, or removal of the lock from the inside when closed — ensuring maximum security. It is suitable for various types of wooden or iron doors.

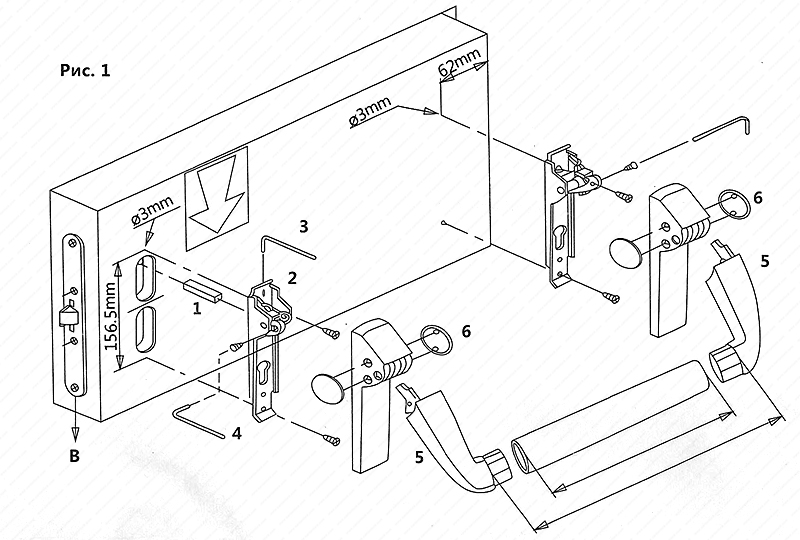

2. Installation:

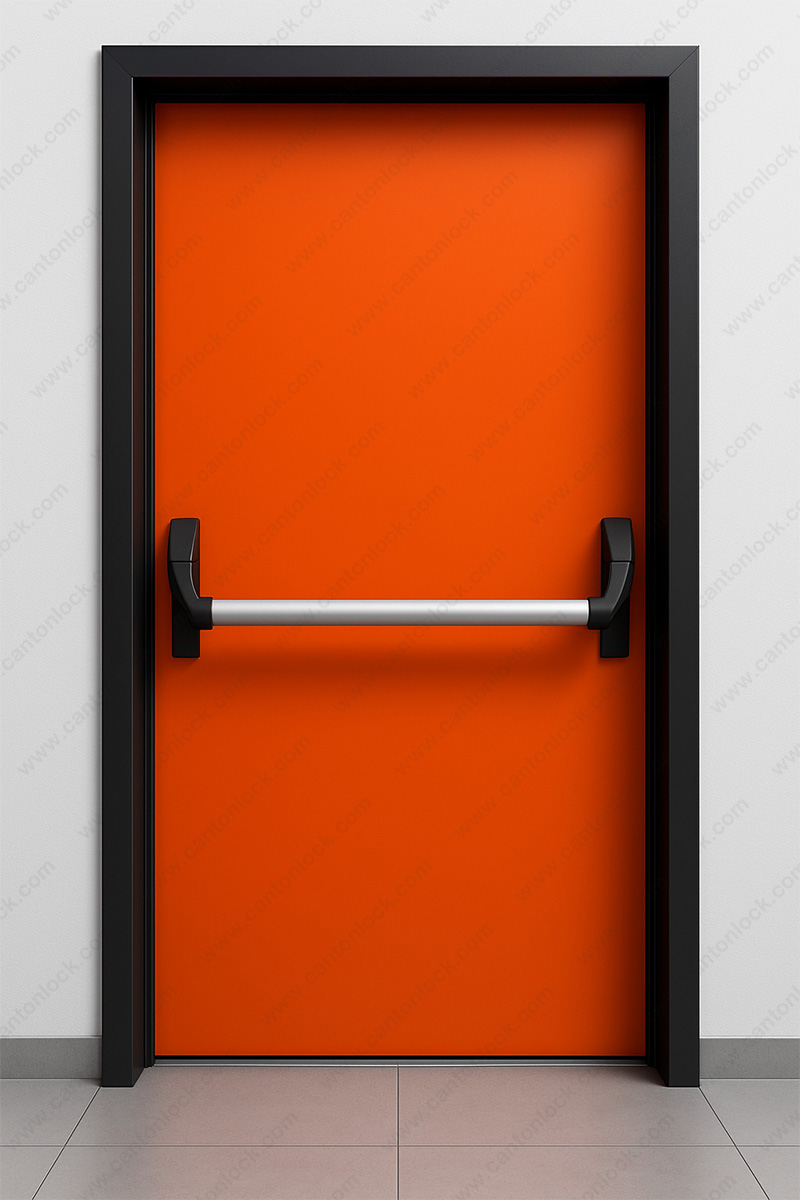

Designed for single-leaf and fire-rated doors.
3. Usage:
Reversible for both left- and right-hand opening directions. Applicable for door widths up to 1300×1300 mm. The steel handle bar can be cut to size during installation.
4. Locking System:
Kale cylinder with 3 keys for external operation; panic bar for internal emergency exit.
5. Optional:

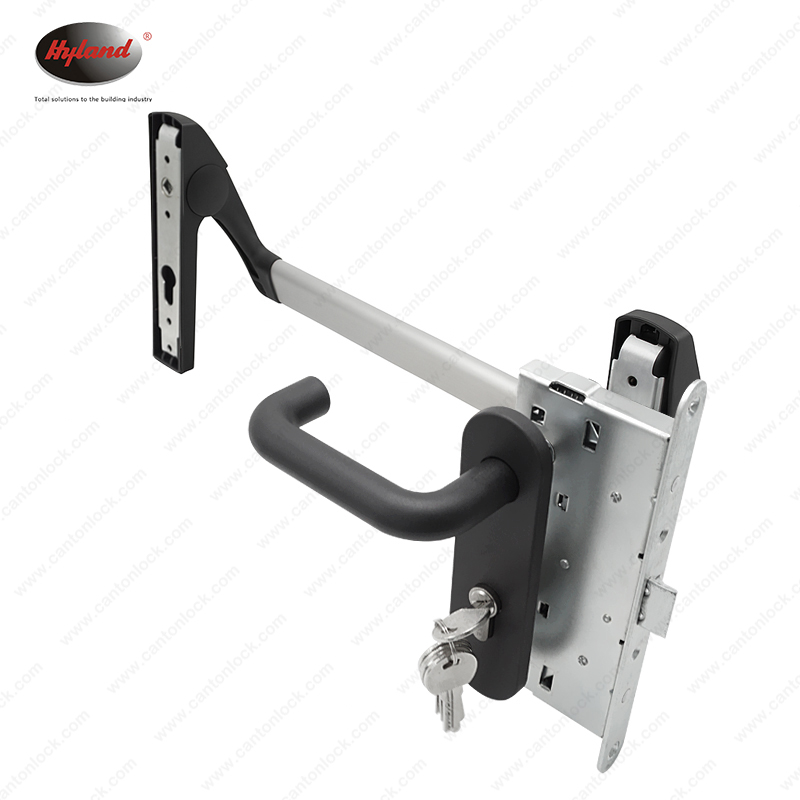

Lockable external handle unit with 2 keys (optional accessory).
