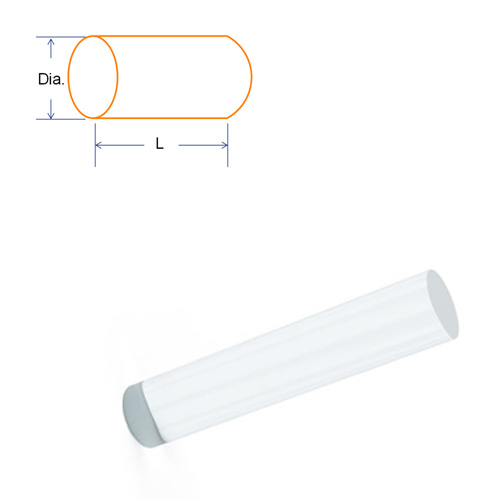

Rod Lens Optical Glass K9 Lens Manufacture
Posting date : Mar 29, 2022
Membership
Free Member Scince Mar 29, 2022
FOB Price
2.5-15USD/PC
Min. Order Quantity
5pcs
Supply Abillity
50000pcs/month
Port
SHANGHAI/SHENZHENG
Payment Terms
T/T, PAYAPL
Package
Standard Export Carton Protection & Close Package
Keyword :
Category
Contact
jessie
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Rod Lens
HS-CODE
9001-90
Package & Delivery Lead Time
Package
Standard Export Carton Protection & Close Package
Delivery Lead Time
1-4Weeks once confirmed the payment
Detailed Description

Hanzhong Brisun Optics Co., Ltd. Is the high High precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements. The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials. And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.


Spherical lens is an important optical element, which is mainly made of optical glass and other materials. It is used for the coupling between optical fibers, between laser and optical fiber, and between optical fiber and detector, or for the collimation of optical fiber beam in thin film filtered dense wavelength division multiplexer.


Spherical lens is also called glass bead. It is a solid or hollow glass bead with a diameter of several microns to tens of microns. Its application fields involve various departments such as chemical industry, aerospace, transportation, petroleum, light industry, medical treatment and so on. It has the characteristics of good surface finish, good light reflection, directional reflection, high impact strength, chemical stability, light bulk weight and so on.


Technical parameters:

Material: optical glass, H-K9L (N-BK7),UV quartz

Radius of curvature: ± 1mm - ± 50000mm ± 1%

Outer circle: 3mm-100mm ± 0.1mm

Center thickness tolerance: ± 0.05mm (we can process to ± 0.01mm with high precision)

Center deviation: 3′(we can process to 30 ″with high precision)

Surface accuracy: λ/ 8 (high precision, we can process to 1 / 10λ)

Surface quality: 60/40 (we can process to 10-5 with high precision)

Effective caliber: ≥90%

Coating: Coating: multilayer antireflective film

A:250-400nm or according to the custom requirements



In addition, we have thousands of kinds of stock, such as quartz plano convex lens, quartz plano concave lens, quartz biconvex lens, quartz biconvex lens, cylindrical lens, prism, filters, windows, beamsplitter and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.


If you are interested it, welcome to inquiry us or search “Hanzhong Borisun Optics Co.,Ltd ”to know about more details.
