Biconvex Cylindrical Bouble Convex Cylidrical China Manufacture
Posting date : Mar 29, 2022
Membership
Free Member Scince Mar 29, 2022
FOB Price
2.5-15USD/PC
Min. Order Quantity
5pcs
Supply Abillity
50000pcs/month
Port
SHANGHAI/SHENZHENG
Payment Terms
T/T, PAYAPL
Package
Standard Export Carton Protection & Close Package
Keyword :
Category
Contact
jessie
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Bouble Convex Cylidrical
HS-CODE
9001-90
Package & Delivery Lead Time
Package
Standard Export Carton Protection & Close Package
Delivery Lead Time
1-4Weeks once confirmed the payment
Detailed Description

Hanzhong Brisun Optics Co., Ltd. Is the high High precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements. The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials. And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.

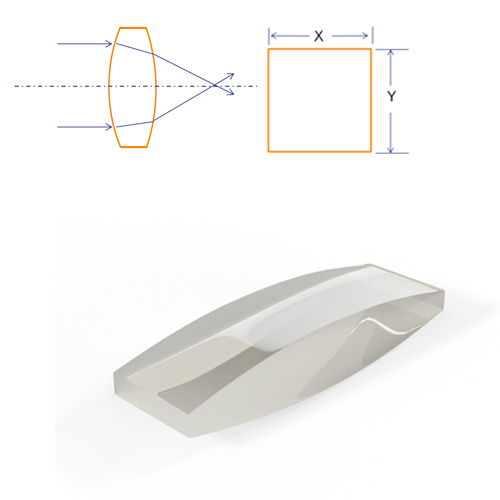

Biconvex cylindrical lens is mainly used to change the design requirements of imaging size. For example, convert a point spot into a line spot, or change the height of the image without changing the image width. It can be used in linear detector lighting, bar code scanning, holographic lighting, optical information processing, computer and laser emission. Optical cylindrical mirror is also widely used in high-power laser system and synchrotron radiation beam line. At the same time, the requirements for biconvex cylindrical mirror parts are becoming higher and higher, especially in high-precision testing instruments and devices such as cavity plate of high-power laser resonator and long-distance off-line interferometer.


Technical parameters:

Material: optical glass, H-K9L (N-BK7),UV quartz

Radius of curvature: ± 1mm - ± 50000mm ± 1%

Outer circle: 3mm-100mm ± 0.1mm

Center thickness tolerance: ± 0.05mm (we can process to ± 0.01mm with high precision)

Center deviation: 3′(we can process to 30 ″with high precision)

Surface accuracy: λ/ 8 (high precision, we can process to 1 / 10λ)

Surface quality: 60/40 (we can process to 10-5 with high precision)

Effective caliber: ≥90%

Coating: Coating: multilayer antireflective film

A:250-400nm or according to the custom requirements


In addition, we have thousands of kinds of stock, such as quartz plano convex lens, quartz plano concave lens, quartz biconvex lens, quartz biconvex lens, cylindrical lens, prism, filters, windows, beamsplitter and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.


If you are interested it, welcome to inquiry us or search “Hanzhong Borisun Optics Co.,Ltd ”to know about more details.
