China Factory Derect Customized Plano Concave Lens Mirror with K9 Quartz

본문 바로가기


Home > Product > China Factory Derect Customized Plano Concave Lens Mirror with K9 Quartz
Product
China Factory Derect Customized Plano Concave Lens Mirror with K9 Quar...
Posting date : Mar 29, 2022
Membership
Free Member Scince Mar 29, 2022
FOB Price
2.5-15USD/PC
Min. Order Quantity
5pcs
Supply Abillity
50000pcs/month
Port
SHANGHAI/SHENZHENG
Payment Terms
T/T, PAYAPL/
Package
Standard Export Carton Protection & Close Package
Keyword :
Category
Contact
jessie
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
plano concave lens
HS-CODE
9001-90
Package & Delivery Lead Time
Package
Standard Export Carton Protection & Close Package
Delivery Lead Time
1-4Weeks once confirmed the payment
Detailed Description

Hanzhong Brisun Optics Co., Ltd. Is the high High precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements. The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials. And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.

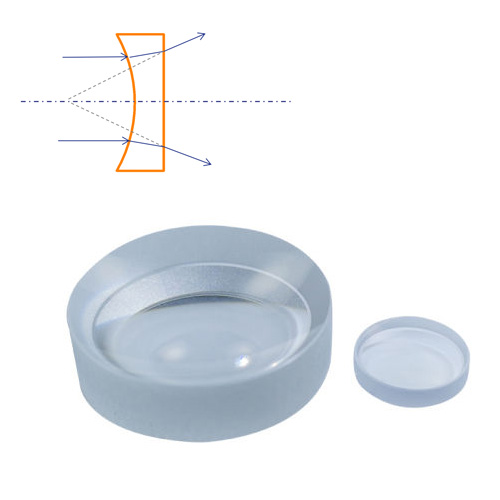

The plano concave lens is used to diverge the parallel light outward. The focal length of the flat concave lens is negative and the spherical aberration is also negative. It can be used to correct the phase difference, spherical aberration, coma and distortion of other lenses. Similar to the flat concave mirror, the side is generally opposite to the far object surface or infinity.


K9 plano concave spherical lens can see the transmittance of near infrared (350-2000nm).


H-K9L (N-BK7) is an optical glass commonly used in the preparation of optical elements.


These uncoated plano concave lenses are prepared using H-K9L (N-BK7) conforming to ROHS standard. The collimated beam can converge on the rear focus, or the point light source can be changed into a collimated beam.


Technical parameters:

Material: optical glass, H-K9L (N-BK7),fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire

Radius of curvature: ± 1mm - ± 50000mm ± 1%

Outer circle: 3mm-500mm ± 0.1mm

Center thickness tolerance: ± 0.05mm (we can process to ± 0.01mm with high precision)

Center deviation: 3′(we can process to 30 ″with high precision)

Surface accuracy: λ/ 8 (high precision, we can process to 1 / 10λ)

Surface quality: 60/40 (we can process to 10-5 with high precision)

Effective caliber: ≥90%

Coating: Coating: multilayer antireflective film

A:350-650nm

B:650-1050nm

C:1050-1580nm



In addition, we have thousands of kinds of stock, such as quartz plano convex lens, quartz plano concave lens, quartz biconvex lens, quartz biconvex lens, cylindrical lens, prism, filters, windows, beamsplitter and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.

If you are interested it, welcome to inquiry us or search “Hanzhong Borisun Optics Co.,Ltd ”to know about more details.
