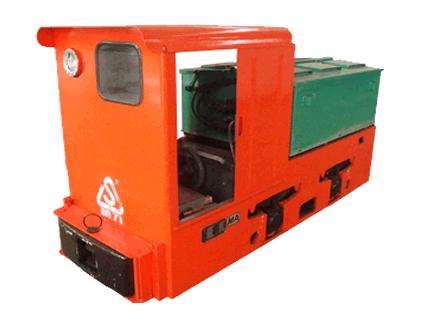

5 Tonne Narrow Gauge Battery Locomotive for Mine Tunnel Transportation
Posting date : Jun 25, 2021
Membership
Free Member Scince Jun 25, 2021
FOB Price
USD10000-100000
Min. Order Quantity
1
Supply Abillity
1200 sets/one year
Port
Shenzhen
Payment Terms
T/T,L/C
Package
Standard Export package
Keyword :
Category
Contact
Krissy
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
SHAOLI
Model Number
CTY5/6,7,9G(B)
HS-CODE
8601-
Package & Delivery Lead Time
Package
Standard Export package
Delivery Lead Time
30 days
Detailed Description



Technical Specifications
Model Name CTY5/6,7,9G(B)
Adhesive Weight 5 tons
Track Gauge 600, 762 or 900mm(according to requirements)
Hourly System Traction 7.06kN
Max. Traction 12.26kN
Hourly System Speed 7km/h
Supply Voltage 90V
Capacity of Traction Battery 330Ah or 385Ah ( 5 hours capacity)
Power of Electric Motor 7.5 kW*2
Length 2960mm or 2860mm
Width 920, 1082 or 1220mm
Height 1550mm
Wheelbase 850mm
Wheel Diameter Φ520mm
Height of Traction 210 or 320mm
Min. Turning Radius 6m
Speed Regulating Mode Resistance or IGBT
Braking Mode Mechanical Brake

Frame

Constructed in welded steel and suspended by leaf spring on grease bearing seats with tapered roller bearings.

Speed control

In order to achieve continuous and stepless speed regulation, they have an electronic speed controller with high reliability.

Brakes

Mechanical brake to the four wheels by brake shoes.

Sanders

Pneumatic sanding system to the rails.

Battery

The battery housing is constructed in steel plating with an interior anti-acid covering. Each device has 45 pcs series storage lead acid batteries.

Buffers and motor suspension

The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions. Equally, the motor is suspended from the chassis by a springs brace.
