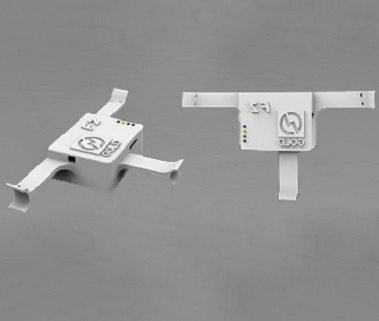

DJI UAV PPK Upgrade Kit for Topography & Mapping
0 likes
China [CN]
Compare | |
RTK Work mode | PPK Work mode |
Real-time positioning | Post-processing technology |
Operating radius generally not exceed 10Km | Operating radius generally exceed 50Km Max. |
Need to connect to the Internet or radio | Static collection |
Easily affected by terrain to lose signal | Signal is stable and hard to lose |
1-2Hz Positioning frequency | Higher Positioning frequency ensure accuracy |
Adapt to the following models
Phantom 4/Phantom 4 Advance
Phantom 4 Pro/Phantom 4 Pro 2.0
Mavic 2 pro/Mavic 2 Zoom
Technical Parameters
models | F2 | |
Machenical | Size | 56.4*45.3*14.6mm |
Weight | 56g | |
Operating T | -20 ~+65℃ | |
Electrical | Battery capacity | 4.2V 1500mAh |
Antenna voltage | 3.3V | |
Length of work | 12h | |
position | H | 10mm+1pmm |
V | 20mm+2pmm | |
Data | Storage | 16GB |
Record format | RINEX,NMEA | |
Output format | NMEA,LLH/XYZ | |
Update rate | 5 Hz | |
GNSS |
Signal | GPS/QZSS L1,L2 |
GLONASS G1 | ||
BeiDou B1 | ||
Galileo E1 | ||
SBAS | ||
connectivity | TF card; LED light(power,record,sensor,satellite); DJI trigger sensor Antenna MCX | |
channels | 184 | |
