Geophysical Mavic 2 pro GNSS PPK KIT
0 likes
China [CN]
Q＆A
1,What is GNSS PPK Kit?
GNSS PPK Kit is a auxiliary tool，make drones perform better in aerial surveying and mapping work.
2,Where GNSS PPK Kit get used?
GNSS PPK Kit mainly get used in surveying and mapping work related to terrain survey.Also common in the work of water conservancy, electric power, and municipal departments.And even traffic department.
3,Why GNSS PPK Kit is more suitable for terrain survey?
UAVs generally have their own RTK working mode for map surveying and mapping.But，this working mode has certain flaws.It needs the support of communication technology to ensure the accuracy of real-time positioning, while the PPK working mode only needs to be collected statically, which reduces the possibility of signal loss.
And in most cases, it is very difficult to set up GCP（Ground Control Points） in field surveys. The PPK mode can reduce the point setting work by more than 80%, even without setting.
Here attaches parameters:
models | F2 | |
Machenical | Size | 56.4*45.3*14.6mm |
Weight | 56g | |
Operating T | -20 ~+65℃ | |
Electrical | Battery capacity | 4.2V 1500mAh |
Antenna voltage | 3.3V | |
Length of work | 12h | |
position | H | 10mm+1pmm |
V | 20mm+2pmm | |
Data | Storage | 16GB |
Record format | RINEX,NMEA | |
Output format | NMEA,LLH/XYZ | |
Update rate | 5 Hz | |
GNSS |
Signal | GPS/QZSS L1,L2 |
GLONASS G1 | ||
BeiDou B1 | ||
Galileo E1 | ||
SBAS | ||

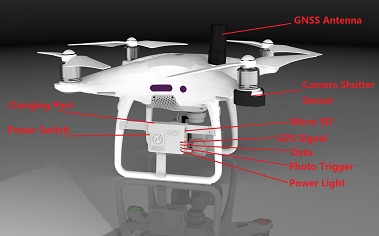

connectivity | TF card; LED light(power,record,sensor,satellite); DJI trigger sensor Antenna MCX | |
channels | 184 | |
