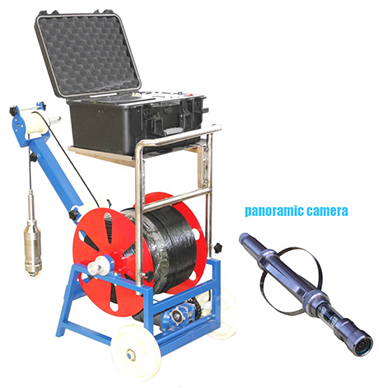

Panoramic borehole logging camera Electric borewell scanning camera Logging System
0 likes
China [CN]
When you need a device to explore underground tunnels and figure out its internal conditions, borehole camera is your essential helper. And our GYGD-III Panoramic borehole logging camera will be your more professional choice.
GYGD-III Panoramic borehole logging camera design for：
Hydrology,
Mining,
Civil engineering, drilling,
Oil well,
Engineering and even civil use.
You can use GYGD-III Panoramic borehole logging camera to :

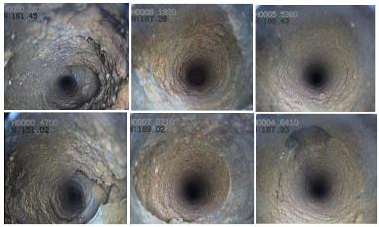

Detect the cracks, dislocations, falling objects of the well wall, clogging of the filter pipe orifice, and the position of the quicksand.
Geological conditions such as the size and location of the karst caves can also be observed in the bedrock fissures and development conditions in the bedrock area.

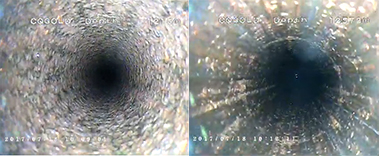

Panoramic camera means that GYGD-III Panoramic borehole logging camera is capable to show a full range of images, without the need to manually control the camera steering, you can conduct a comprehensive observation of the inside of the tunnel, which means that you can observe the hole wall and the bottom of the hole at the same time, saving time for downhole maintenance work .
specific parameters
No. | Description | Parameter | Remarks |
1 | Imaging chip | 1/3”color CCD |
|
2 | Resolution | 850TVL |
|
3 | Focusing | Automatic | Can also be manual |
4 | Lighting | High power lighting LED |
|
5 | Measuring depth | 0-2000m |
|
6 | Color rotating lens | 12,000,000 pixel sensitivity 1.5 Lux |
|
7 | Viewing Angle | 180° Hole Wall |
|
8 | Scan | Automatic scan |
|
9 | Control | Dynamic change speed or footage |
|
10 | Illuminating brightness | Automatic |
|
11 | Connection | USB port | Can connect with PC |

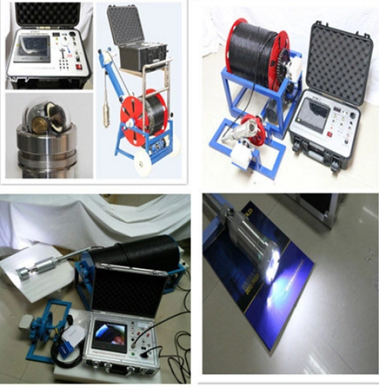

Display
Feel free to contact
