Confusing with solution to professional geodetic mapping?Come to get the GOLD drone ppk upgrade kit right now!
Proven professional solution
GOLD PPK is developed for geospatial professionals. Aerial surveying traditionally required many GCPs (ground control points) across the site to achieve reasonable absolute geo-positioning accuracy. With the GOLD PPK system there is a simple, effective solution to save hours or days in the field and achieve even better results.
The GOLD PPK direct georeferencing system, a synergy of hardware, software and methodology, is the most accurate precision surveying technology for mapping with drones and manned aircraft.
With GOLD PPK direct georeferencing, you can cover larger areas in a single flight by reducing the side overlap down to 40%. You no longer need to place GCPs across your entire site (do have some check points though to prove just how accurate it is). Photogrammetry processing is faster and more accurate.
APPLICATION

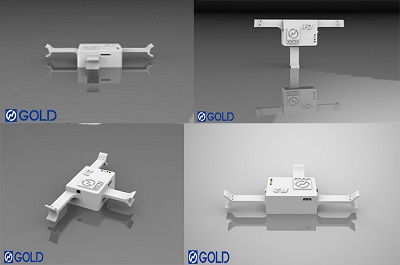

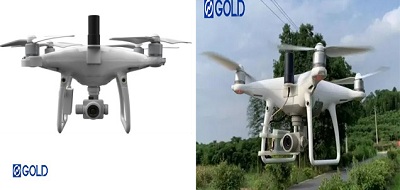

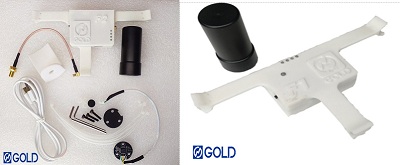

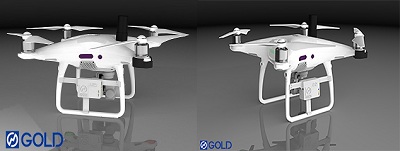

The GOLD PPK upgrade kit is suitable for DJI series UAVs,
with a professional GPS positioning system, suitable for
topographic surveying and mapping,
plant protection surveying and mapping,
water conservancy law enforcement, traffic law enforcement,
power inspection and three-digit acquisition industries.
Our kit is suitable for the following models:
Phantom 4
Phantom 4 Advance
Phantom 4 Pro
Phantom 4 Pro 2.0
Mavic 2 pro
Mavic 2 Zoom
Technical Specification for GPS Receiver
Models | F2 | |
Mechanical | Size | 56.4 * 45.3 * 14.6 mm |
Weight | 56g | |
Operating T | -25 ~+60 | |
GNSS | Signals | GPS L1/L2, GLONASS L1/L2 BeiDou B1/B2, Galileo E1, E5 SBAS |
Tracking channels | 184 | |
| Interface | Event ,TFcard |
Led | Power,logging,SV,Event | |
Positioning | H | 5mm + 1ppm |
V | 10mm + 2ppm | |
| Update rate | 5Hz |
Electrical | Input voltage | 5V,8V-35V |
Antenna Dc | 5V | |
Average Current consumption | 25mA | |
Data | storage | 16GB |
Data format | Rinex | |
Connetivity | Antenna | Mcx |
