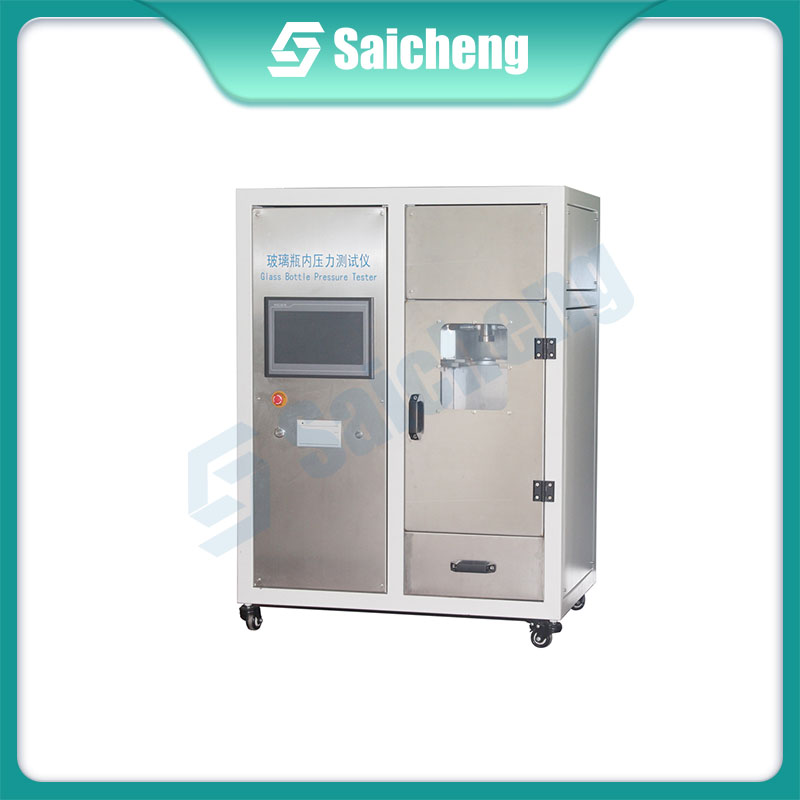

SCK-Y Glass Bottle Internal Pressure Tester Equipment
0 likes
China [CN] SCK-Y Glass Bottle Internal Pressure Tester Equipment is suitable for the internal pressure test of all kinds of beer bottles, wine bottles, beverage bottles, infusion bottles, antibiotic vials, etc. This instrument meets the requirements of the holding pressure test and explosive pressure test of any size of bottles. The internal pressure test machine for glass bottles is used by breweries, glass bottle manufacturers, test agencies and pharmaceutical manufacturers.
Ø Touch interface is more convenient to operate.
Ø Innovated device of tank collects fragments of glass and water.
Ø Experiments of pressurization and maintaining pressure can be carried out respectively.
Ø The accuracy of reading pressure can reach 0.01Mpa and the maximum testable pressure is up to 6.00mpa to meet user’s requirements for high-level test.
Ø The test speed is so fast that the boosting time for each bottle tested is less than 10 seconds, which helps users to improve the efficiency.
Ø Automatic functions: pressurization, maintaining pressure, pressure relief at the end of the test and fault alarm.
Ø Micro-printer facilitates filing and saving data.
The pressure generated by the hydraulic pump driven by the servo motor is transmitted through the pipeline to the pressure sensor and the glass bottle tested in an equivalent manner . The equipment’s controller collects the signal of pressure from the sensor in real-time and controls the servo motor according to the signal value. Drive the hydraulic pump to linearly increase the pressure in the system according to the requirements until it reaches the preset value. The deadline of ramp pressure will be known and users can check if the bottle would rupture at a preset pressure value.
GB/T 4546-2008, YBB00172003-2015.
Internal pressure test of various glass bottles such as beer bottles, beverage bottles, vials, infusion bottles, etc. Pressure holding test and burst pressure test of various different volume glass bottle.
Pressure Range | 0.5 - 6Mpa |
Resolution | 0.01 Mpa |
Tol. of Pressure | ±0.5%F.S |
Testing Number per Min. | 6 ~ 10 |
Tol.of Pressurization | <5% |
Diameter of Clamp of Bottle Mouth | Ф24 ~ 26 (Standard for beer bottle. Customization is available) |
Dimension | 800mm (L) ×500mm (B) ×1000mm (H) |
Power Supply | AC 220V 50Hz |
Net Weight | 45 kg |
Instrument, Micro-Pinter, Clamps.
Saicheng Instrument is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice. Please visit our website for the latest updates.
