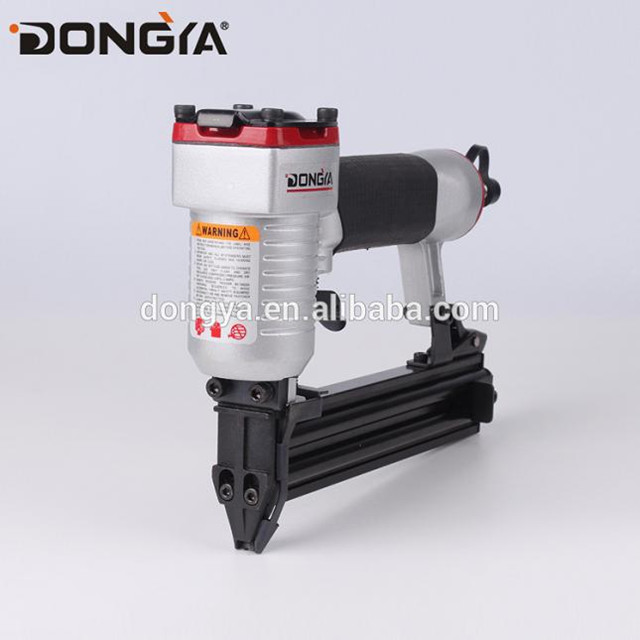

Dongya 18Ga. F32 Pneumatic Air Brad Nailer
0 likes
China [CN] 30 Year Production Experience
Industry's Leading Factory
Taiwan Engineer
Taiwan Spare Parts
F32 SPECIFICATION
|
FEATURE
• "Contact mode" safety system • Light die cast body of aluminum alloy • Side loading design• Have Black ,Bronze,Smoky Gray Color Magazine |
|
Parameters
| Tool Diamensions: | 250x58x185mm (9.84x2.28x7.28 in.) |
| Net Tool Weight: | 1.08kgs (2.38 lbs) |
| Operate Pressure: | 4~7Kg/cm2 (60~100Psi) |
| Load Capacity: | 100 Nails |
| Nail Length: | 10-32mm(3/8"-1-1/4") |
| Nail Diameter: | 1.25X1.05mm(0.05X0.041") |
| Nail Head Diameter: | 2mm(0.079") |
F32 ADVANTAGE
1. 300000 working times
2. 100% Spare parts can be supplied to you.
3. With CE,ISO9001:2008 certificate
4. Very powerful for hard wood
| MAIN APPLICATION FOR F32 Brad Nail Gun |
F32 Brad Nail Gun PACKAGE DETAILS
| SERVICE AND REPAIRS |
| No. | Symptom | Problems | Solutions | |
| 1.1 | Air Leak | Air leak in the cylinder cap when tools don't work | 1.Loose head valve piston seal or o-rings . | Check and replace the head valve piston set |
| 2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap | Check and replace o-ring or cylinder cap gasket under the cylinder cap | |||
| 1.2 | Air leak in Trigger area when tools don't work | 1.Damaged o-ring in trigger valve | Check and replace o-ring | |
| 2.Damaged o-ring in trigger valve stem | Check and replace o-ring | |||
| 3.Dirt in the trigger valve | Check and clean the trigger valve | |||
| 1.3 | Air leak in cylinder cap when tools are working | 1.Damaged head valve piston o-rings | Check and replace o-rings | |
| 2.Damaged seal under cylinder cap | Check and replace seal | |||
| 1.4 | Air leak in nose when tools are working | 1.Worn or damaged bumper | Check and replace bumper | |
| 2.Loose driver(piston unit) thread | Check and replace driver(piston unit) | |||
| 1.5 | Air leak in Trigger area when tools are working | 1.Worn or damaged trigger valve head | Check and replace trigger valve head | |
| 2.Damaged head valve piston o-rings | Check and replace head valve piston o-rings | |||
| 2 | Failed to get driver(piston unit) back to the correct position completely. | 1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled. | Straighten the driver(piston unit) or verify driver guide(nose) and magazine | |
| 2.Worn or damaged nozzle | Check and replace nozzle | |||
| 3.The space between piston o-ring and cylinder is too tight. | Check if the cylinder is adequate lubrication or replace the o-ring on the piston. | |||
| 3 | Work weakly and sluggishly | 1. Worn or damaged piston o-ring | Check and replace piston o-ring | |
| 2.Inadequate lubrication for head valve piston o-rings or too tight head valve piston o-rings | Place 2 or 6 drops of oil on o-rings or replace head valve piston o-rings | |||
| 3.Dirt in the nozzle | Check and clean the nozzle | |||
| 4 | Tool jams frequently | 1.Damaged or Worn driver (piston unit) | Check and replace driver (piston unit) | |
| 2.Damaged or Worn driver guide (nose) | Check and replace driver guide (nose) | |||
| 3.Driver guide cover is bent,so the space between driver guide cover and driver guide is too big | Check and replace driver guide cover | |||
| 5 | Nail can not be shot | 1. Driver (piston unit) can't return to the correct position. | Refer to no. 1 Symptom | |
| 2.Driver guide(nose) can not match magazine well | Check and correct the position between driver guide(nose) and magazine | |||
| 3.Worn or damaged nail pusher compression spring | Check and replace nail pusher compression spring | |||
FACTORY PROFILE
| WHY CHOOSE US? |
1) 30 Years Production Experience
2) 13 Years Alibaba Gold supplier with High Reputation
3) 100% QC Inspection before Shipment
4) Engineer Team from Taiwan
5) Competitive price
6) Lifelong After-Sale Service
7) Advanced Machines
8) CE Certificate and ISO 9001:2008
9) OEM Available
10) Sample Available
