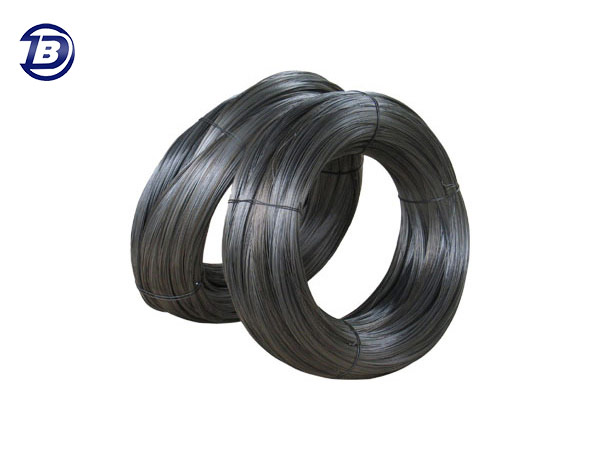

Black Annealed Wire
0 likes
China [CN] Sample: up to the request
Inspection: allowed
Specifications
Black Annealed Wire
1. Manufacutrer & exporter
2. Meterial: Q195 Q235
3. Tensile strength: 35-55kg/mm2
4. Elongation rate: 10%-25%
Soft Black Iron Wire
The soft black iron wire comes into the form of coil wire ,spool wire, U type wire or cut wire.
The black annealed wire is made of high quality low carbon steel wire rod Q195 or Q235.
It is refined with Pickling drawing high temperature burning and so on.
Standard gauge: from 8#-34#(0.18mm-4mm)
Characteristics and application: Strong flexibility plasticity and a wide range of uses such as daily binding construction use ,industrial use handcraft making net etc.
Commom packing: 0.5kg-1000kg/coil.plastic film inside then wrapped with white or other colour PVC weaving bag or hessian cloth outside
Payment: 30%T/T in advance and balance against the copy of B/L or 100%L/C at sight or according to the customers' requirements .
| Wire Gauge | SWG in mm | BWG in mm | In Metric System mm |
| 8# | 4.06 | 4.19 | 4.00 |
| 9# | 3.66 | 3.76 | - |
| 10# | 3.25 | 3.40 | 3.50 |
| 11# | 2.95 | 3.05 | 3.00 |
| 12# | 2.64 | 2.77 | 2.80 |
| 13# | 2.34 | 2.41 | 2.50 |
| 14# | 2.03 | 2.11 | - |
| 15# | 1.83 | 1.83 | 1.80 |
| 16# | 1.63 | 1.65 | 1.65 |
| 17# | 1.42 | 1.47 | 1.40 |
| 18# | 1.22 | 1.25 | 1.20 |
| 19# | 1.02 | 1.07 | 1.00 |
| 20# | 0.91 | 0.89 | 0.90 |
| 21# | 0.81 | 0.813 | 0.80 |
| 22# | 0.71 | 0.711 | 0.70 |
| 23# to 34# also available for galvanized iron wire. | |||
