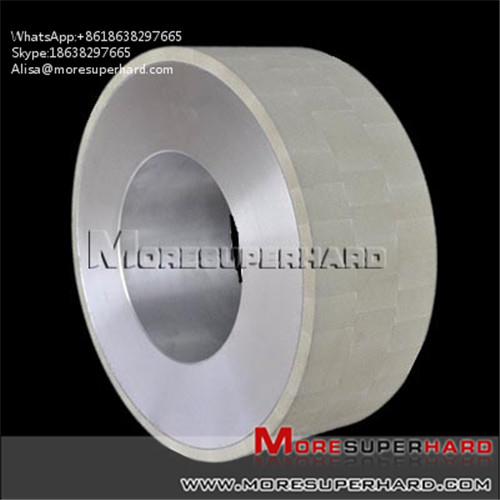

Vitrified diamond wheels are used for rough and precision grinding the Cylinder of Polycrystalline Diamond Compacts (PDC cutter)

본문 바로가기


Home > Product > Vitrified diamond wheels are used for rough and precision grinding the Cylinder of Polycrystalline Diamond Compacts (PDC cutter)
Product
Vitrified diamond wheels are used for rough and precision grinding the...
Posting date : Oct 10, 2018
Membership
Free Member Scince Jul 02, 2018
FOB Price
30 USD
Min. Order Quantity
1 slier
Supply Abillity
200 slier every week
Port
Shanghai
Payment Terms
T/T, Western Union, MoneyGram
Package
carton box with foam box (Gift package is available)
Keyword :
Category
Contact
Alisa Zhang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Moresuperhard
Model Number
1A1, 6A1, 9A1
HS-CODE
6804-
Package & Delivery Lead Time
Package
carton box with foam box (Gift package is available)
Delivery Lead Time
7-10 work days
Detailed Description

Vitrified products have the features of sharp cutting, high efficiency, long life ,easy dressing. Vitrified diamond wheels are used for rough and precision grinding the Cylinder of Polycrystalline Diamond Compacts (PDC cutter).

Application Of Vitrified Diamond Grinding Wheels For PDC

Grinding PCD, PCBN,tungsten carbide, ceramic, cermet, etc.

Advantages Of Vitrified Diamond Grinding Wheels For PDC

* Compared with resin diamond grinding wheel, vitrified bond wheels lead to 35% grinding cost reduced, 40% grinding time of each PDC saved, and the size precision of PDC improved (from ±0.03mm to ±0.01mm)

* Good surface finish after grinding and high efficiency

* Less dressing time, long service life and stable quality

Specifications Of vitrified diamond wheels For Rough And Precision Grinding PDC

rough grinding PDC cutter

Model

D (mm)

T (mm)

H (mm)

X (mm)

1A1 diamond grinding wheel

1A1

200

50

75

10

250

50

75

10

300

50

127

10

350

50

127

10

400

50

203

10

450

50

228.6

10

500

50

305

10

Others Size Can Be Made According To Customer’s Requirements.

Precision grinding PDC cutter

Model

D (mm)

T (mm)

H (mm)

X (mm)

1A1, 6A1, 9A1

200

50

75

10

250

100

75

10

300

100,150

127

10

350

125, 150

127

10

400

150,300

203

10

450

150,200,300

228.6

10

500

150,200

305

10

Others Size Can Be Made According To Customer’s Requirements.

Product description of vitrified bond diamond grinding wheels

1.Vitrified bond diamond grinding wheel possess pretty high abrasive resistance, especially in polishing hard and brittle workpiece.

2.Vitrified bond diamond grinding wheel has many advantages like small grinding force, low operating temperature, high grinding precision, excellent workpiece's surface grinding, etc.

3. Vitrified bond diamond grinding wheel recognized as a high performance grinding wheel with the higher speed, higher efficiency, higher precision, lower abrading cost and lower pollution.

4.Vitrified bond diamond grinding wheel is widely used in wafer, PDC, PDC, diamond cutter, CBN, cemented carbide, new engineering structural ceramic, diamond, jewel, crystal, rare earth materials and another hard-brittle materials' machining operation.



Production process of ceramic diamond grinding wheel:

1. Mix: the binders and diamond powder are fully stirred and fused in a certain proportion

2. Weighing: weighing according to the volume, ring width and density of the grinding wheel required by the customer

3. Feeding: put mixed diamond powder and binding agent into the grinding tool

4: compression ring (let stand for a period of time to wait for molding)

5: back mould

6: the abrasive layer is air-dried

Cook for 10 hours at 7:670 degrees

8: cooling (prepare the matrix at the same time)

9. Fixed decoration of the whole

10: measure stationarity



Why choose our product

More SuperHard Products Co., Ltd is dedicated to finding solutions that help our clients in all markets succeed. More SuperHard has been manufacturing high-quality, competitively priced superabrasive diamond and cbn tools that are designed to perform in a wide range of industrial ,such as pcd tools grinding, natural diamond polishing, auto parts processing , thermal spray coated industry, optical glass, semicon and led industry, woodworking tool , cnc tool grinding and roll machining ,others ultral precision industry.

The company production and sales of products covered vitrified bond tools, resin bond tools, metal bond tools, electroplated diamond/cbn tools, vaccum brazed products, cvd diamond tools, polycrystalline diamond (pcd) tools, cubic boron nitride (cbn) tools.our objective is to meet all the customers’ needs and help every customer achieve maximum benefits.  more brings in revenue for you, you win, we win!

More SuperHard supplies the wheels for several application mainly:

1.Carbide round tools on cnc machines : flute grinding, gash grinding, end facing, clearance angle and cylindrical grinding .

2. Insert grinding for machines such as: agathon, wendt, haas, waida and ewag.

3.Woodworking saw blade and tools .

4.Hss tools

5.Cutting wheels



Our product’s advantages:

1.High grinding efficiency

2.Wonderful edge quality

3.Long service life

4.High polishing efficiency

5.Large Exports

6.Considerable after-sell service

7.Amazing performance

8.Various types and sizes available

9.Direct Factory Manufacturer

10.Backing/substrate material: Aluminum

11.Abrasive layer: diamond

12.Bond: vitrified

13.Excellent cutting edges

14.Reduced cycle times

15.Custom Engineered
