Unmanaged Industrial Switch PM3012FSI
Posting date : Aug 24, 2018
Membership
Free Member Scince Jul 25, 2018
FOB Price
15-300USD
Min. Order Quantity
200
Supply Abillity
25000 per month
Port
Guangzhou
Payment Terms
T/T, L/C
Package
Customized packaging, OEM, neutral packaging, etc.
Keyword :
Category
Contact
Miggie
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Unipoe
HS-CODE
9999-99
Package & Delivery Lead Time
Package
Customized packaging, OEM, neutral packaging, etc.
Delivery Lead Time
35+ days
Detailed Description

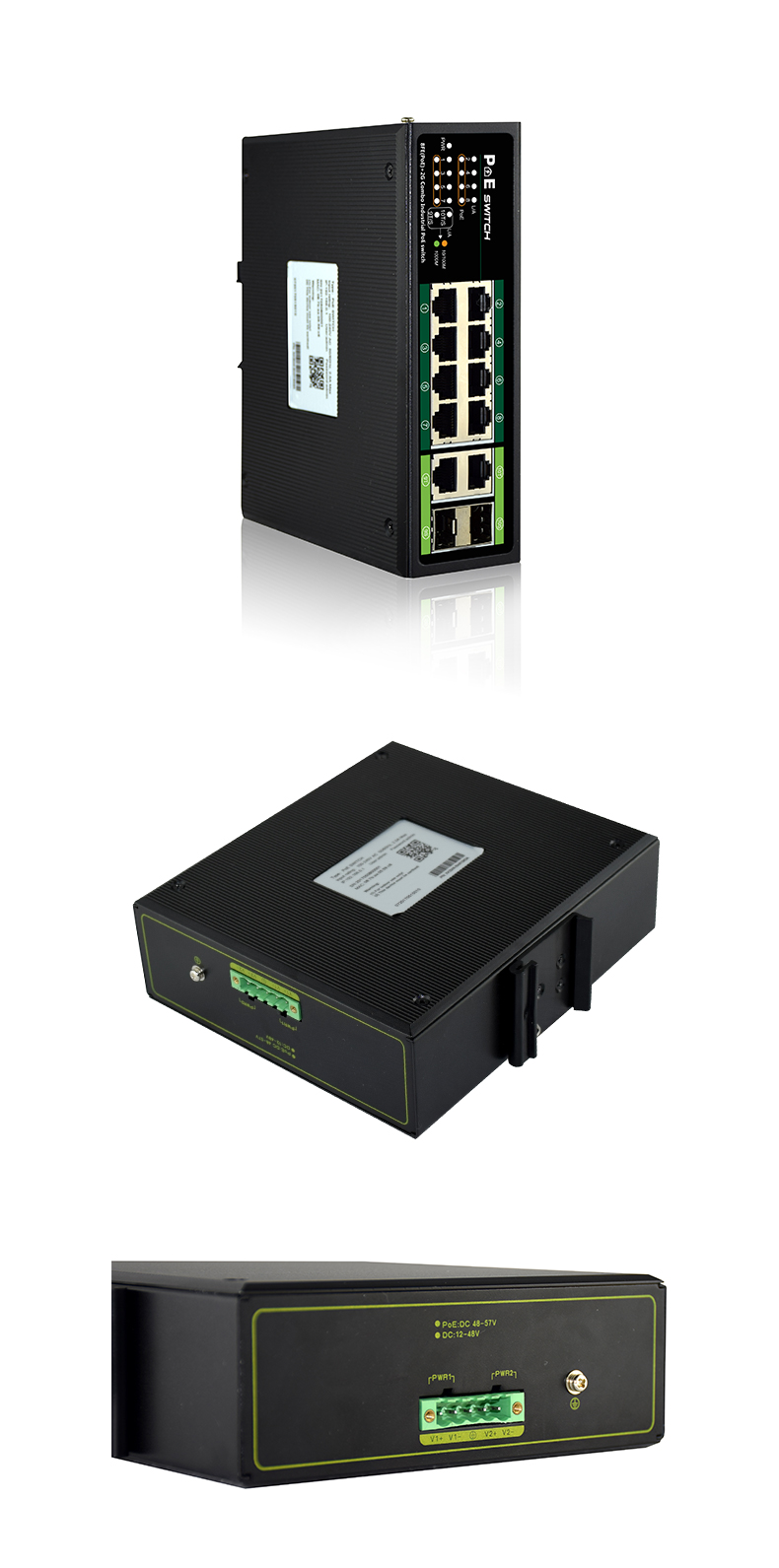

Unmanaged Industrial Switch PM3012FSI is optimal at independent research and development of industrial unmanagement PoE switches, have 8*10/100Mbps RJ45 and 2*Gigabit TP/SFP Combo Ports, RJ45 port support MDI/MDIX automatically flip forward capability and line speed. Among them 1-8 port support PoE function, support IEEE802.3af/at standard, can be used as Ethernet power supply devices, can automatically detect identification standard of electrical equipment, and through the cable for the power supply.This hp industrial switch poe is designed for severe bad industrial environment design, can support rail installation, Port surge protection can be up to 6kv,Working temperature range -40℃~75℃, can satisfy the special demand of industrial automation control.

Unmanaged Industrial PoE Switch 8 Port PM3012FSI Specifications

Hardware Specification

Model
PM3012FSI
Standard
IEEE 802.3、IEEE 802.3u、IEEE 802.3ab 、IEEE 802.3z、IEEE 802.3x、
Interface
8*10/100Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX)
2*Gigabit TP/SFP Combo ports
PoE Standard
IEEE802.3af/at
PoE  Port
1-8 Port
PoE output-port
Max 32W
Transfer Mode
Store-and-forward
Switching Capacity
5.6Gbps
MAC Address Table
8K, Auto-learning, Auto-aging
jumbo frame
1632 Byte
Packet buffer
1M bit
Packet Forward Speed
4.17 Mpps
Input Power Supply
DC:48-57V or (24-48V booster module) optional
Operating Temperature
-40℃~75℃
Storage Temperature
-40 °C ~ 80 °C
Operating Humidity
10% ~ 90% non-condensing
Storage Humidity
5% ~ 90% non-condensing
Dimensions(L*W*H)
165*147*54mm
Fan Quantity
Fanless
Machine weight
<2kg
LED Indicator
PWR(Green)、LNK/ACT(10/100M:Green; Gigabit port:10/100M:Orange,1000M:Green) PoE(Orange)
Network media
10BASE-T: UTP category3,4,5 cable(≤100m)
100BASE-TX: UTP category 5, 5e cable(≤100m)
1000BASE-T: UTP category 5e,5 cable(≤100m)
1000BASE-TX: Turn gigabit SFP optical RJ45 electrical module1000BASE-SX :Gigabit SFP multimode(850nm,LC,DDM)
1000BASE-LX : Gigabit SFP mode (1310nm,LC,DDM)
1000BASE-ZX: Gigabit SFP single mode (1550nm,LC,DDM)
Surge Protection
Differential mode ±4KV  Common mode ±6KV
EEE
IEEE 802.3az
MTBF
>100000 hours
Electrostatic standard
Contact8KV,air10KV


Ordering Information



Model
product information
PM3012FSI
8*10/100Mbps+2GComboIndustrial PoEswitch(Support 802.3 af/at standard)

PM3012FSI Product Features

  • Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD);
  • Stand-up output power up to 32 W;
  • Automatic detection of PD equipment;
  • No fan, full metal high energy roof conducting tank;
  • Auto-detect power device; will not burn non-standard PoE device or normal PoE switch;
  • Support port power supply prioritization, guarantee the continuous power supply of key nodes;
  • Support IEEE802.3 x full-duplex flow control and Backpressure half duplex flow control;
  • Panel lights to monitor working state and help fault analysis;
  • Perfect security mechanism;
  • Operating temperature: -40℃~75℃;

Unipoe Unmanaged Industrial Switch PM3012FSI Package Size

Machine Size (L*W*H): 16*9.25*2.8cmN.W. (Kg):  1.3G.W. (Kg): 1.38MPQ (Pcs): 10 Box Size (L*W*H):  24*19*8.5cmCarton Size (L*W*H):  45.5*25.5*41cmCBM per Carton (m3):  0.048CBM per Carton (m3):


Guangdong UNIPOE IoT Technology Co.,Ltd. is an innovated enterprise which specialized in PoE(Power over Ethernet) technique, is a global supplier and provider of IoT transmissionproducts & solution services. Hot line : 0769 86001588 ,ext.122Website: http://www.unipoe.com/E-mail: info@unipoe.com
