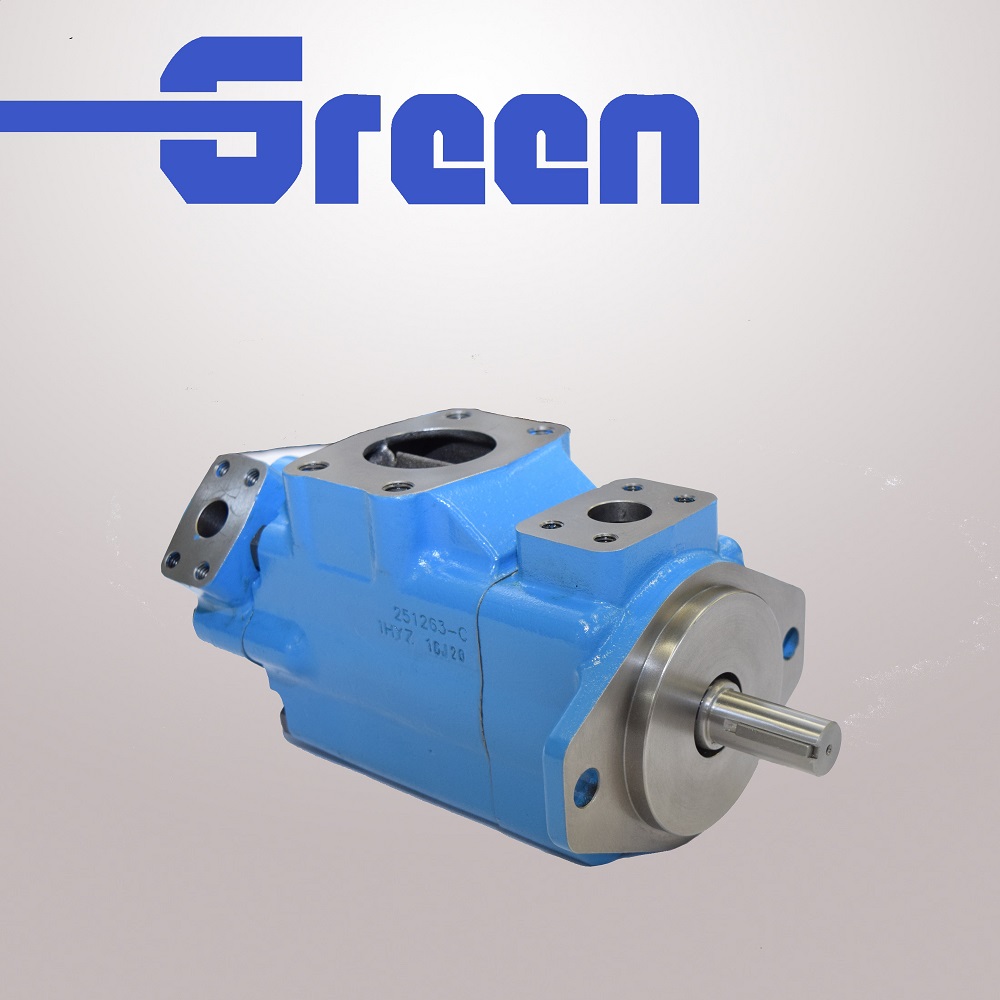

Eaton vickers 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ series hydraulic vane pump
0 likes
China [CN]
VQ Series Pump
The high-pressure and high-performance Intra-vane pumps for Mobile Equipment.
Features:
1. To adopt balanced hydraulic for the structure of Intra-vane and ten-Vane design, higher pressure, top to 21MPa.
2. To adopt floating structure for side plate, it will do a compensation for end-face clearance by automatic, so that even the pump under high pressure it can maintain a high volumetric efficiency.
3. The side plate is made of dual-metal material, it proved the seizure resistance, and so that the life of pump will be longer.
Eaton vickers vane pump 20VQ 25VQ 35VQ 45VQ single pump
Eaton vickers vane pump 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ double pump.
|
(F3-) |
3525VQ |
38 |
A |
17 |
(F) |
-1 |
AB |
22 |
R |
|
Note |
Series |
Flow-Shaft end pump |
Port connections |
Flow-cover end pump |
Installation type |
Shaft type |
Outlet Positions |
Design number |
Rotation |
|
No-marking: Petroleum series oil Emulsification fluid Water glycol-fluid
F3:Phoshate ester fluid |
2520VQ |
10,12,14,15, 17,19,21,25 |
A-SAE 4-bolt flange |
2,3,4,5,6,7,8, 9,10,11,12,14 |
No-marking
Flange Mounting
F-Foot Mountion |
1-Str key 86-HD Str key 11-Spline |
See below |
22 |
(Viewed form shaft end of pump)
R-Right hand for clockwise
L-Left hand for counter clockwise
|
|
3520VQ |
21,25,30,32, 35,38,45 |
2,3,4,5,6,7,8,9, 10,11,12,14 |
|||||||
|
3525VQ |
21,25,30,32, 35,38,45 |
10,12,14,15,17, 19,21,25 |
|||||||
|
4520VQ |
42,45,50,57, 60,66,75 |
2,3,4,5,6,7,8,9, 10,11,12,14 |
|||||||
|
4525VQ |
42,45,50,57, 60,66,75 |
10,12,14,15,17, 19,21,25 |
|||||||
|
4535VQ |
42,45,50,57, 60,66,75 |
21,25,30,32, 35,38,45 |
