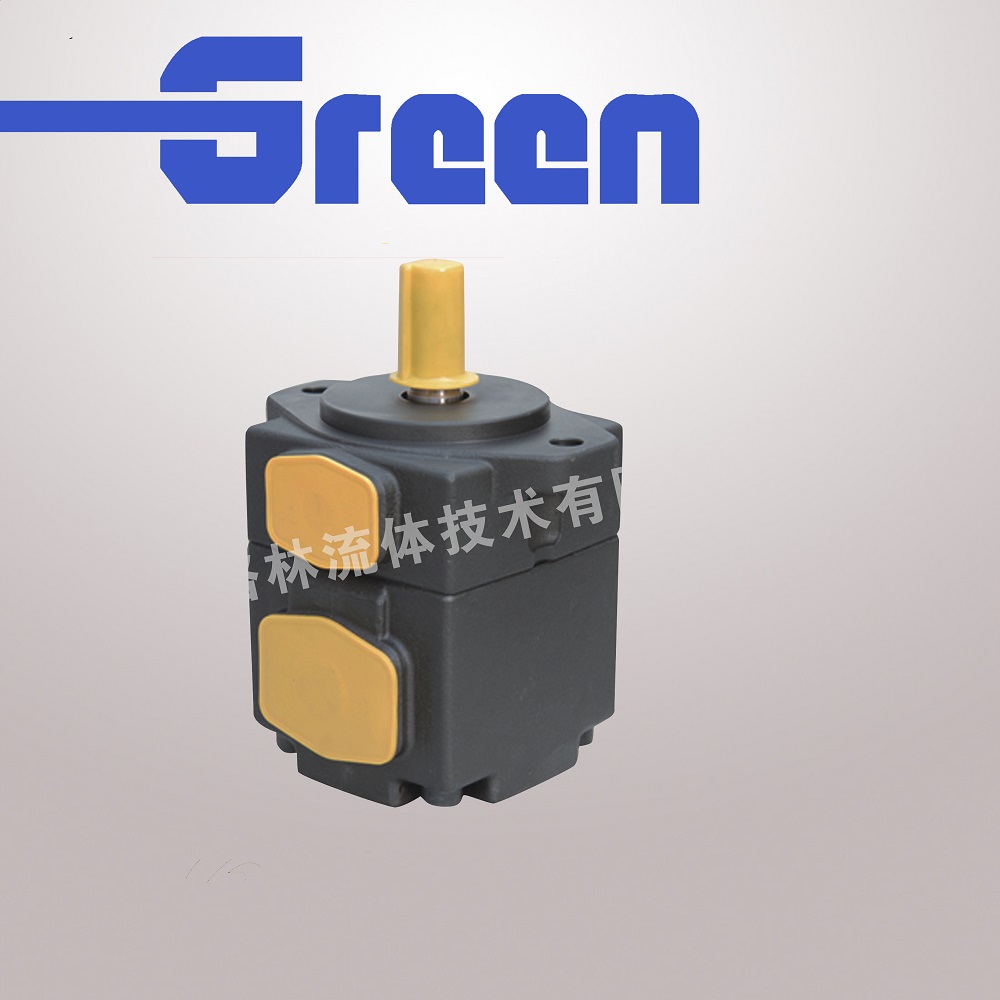

Yuken PV2R hydraulic rotary vane pump
0 likes
China [CN]
|
PV2R1 |
1 |
-* |
-F |
-1 |
-R |
-A |
-A |
|
Vane pumps’ codes |
Model of subsidiary series |
Normal displacement ml/r |
Mounting type |
Shaft extension |
Direction of rotation |
Outlet position |
Inlet position |
|
PV2R1 |
4,6,8,10,12,14,17,19,23,25,28,31 |
F: Flange mounting |
1: Major shaft standard 2: Minor shaft |
(from shaft end) R: Clockwise direction (Right rotation standard)
L:Counterclockwise direction (Left rotation) |
(from shaft end) A: Upper(Standard) R,B,L (Outlet port A is set as upper.) |
(from shaft end) A:Upper(standard) B:Bottom R:Right L:Left |
|
|
PV2R2 |
26,33,41,47,53,59,65,70,79,85 |
||||||
|
PV2R3 |
52,60,66,76,94,116,125,136 |
||||||
|
Model |
Displacement code ml/r |
Max.pressure (Mpa) |
Speed(r/min) |
Input power (kw) |
|||
|
Special oil |
Antiwear oil |
Common oil |
Min. |
Max. |
|||
|
PV2R1-4 |
4.3 |
21 |
17.5 |
16 |
750 |
1800 |
2.1 |
|
PV2R1-6 |
6.5 |
3.2 |
|||||
|
PV2R1-8 |
8.5 |
4.5 |
|||||
|
PV2R1-10 |
10.8 |
5.4 |
|||||
|
PV2R1-12 |
12.8 |
6.1 |
|||||
|
PV2R1-14 |
14.5 |
6.9 |
|||||
|
PV2R1-17 |
16.2 |
7.9 |
|||||
|
PV2R1-19 |
20.1 |
9.6 |
|||||
|
PV2R1-23 |
22.5 |
10.5 |
|||||
|
PV2R1-25 |
25.3 |
12.5 |
|||||
|
PV2R1-28 |
29.6 |
14.0 |
|||||
|
PV2R1-31 |
32.3 |
16 |
16 |
15.5 |
|||
|
PV2R2-26 |
25.3 |
21 |
17.5 |
1800 |
600 |
1800 |
11.7 |
|
PV2R2-33 |
32.3 |
15.5 |
|||||
|
PV2R2-41 |
39.8 |
18.9 |
|||||
|
PV2R2-47 |
49.8 |
23.2 |
|||||
|
PV2R2-53 |
51.5 |
24 |
|||||
|
PV2R2-59 |
55.8 |
24.9 |
|||||
|
PV2R2-65 |
63.7 |
29.4 |
|||||
|
PV2R2-70 |
70.3 |
16 |
1200 |
31.6 |
|||
|
PV2R2-79 |
78.1 |
35.7 |
|||||
|
PV2R2-85 |
82.7 |
37.5 |
|||||
|
PV2R3-52 |
66.7 |
21 |
17.5 |
14 |
600 |
1800 |
23.2 |
|
PV2R3-60 |
79.2 |
29.4 |
|||||
|
PV2R3-66 |
95.0 |
34.2 |
|||||
|
PV2R3-76 |
100 |
37.7 |
|||||
|
PV2R3-94 |
109 |
41.2 |
|||||
|
PV2R3-116 |
118 |
16 |
16 |
50 |
|||
|
PV2R3-125 |
122.2 |
1200 |
59.9 |
||||
|
PV2R3-136 |
134 |
66.7 |
|||||
