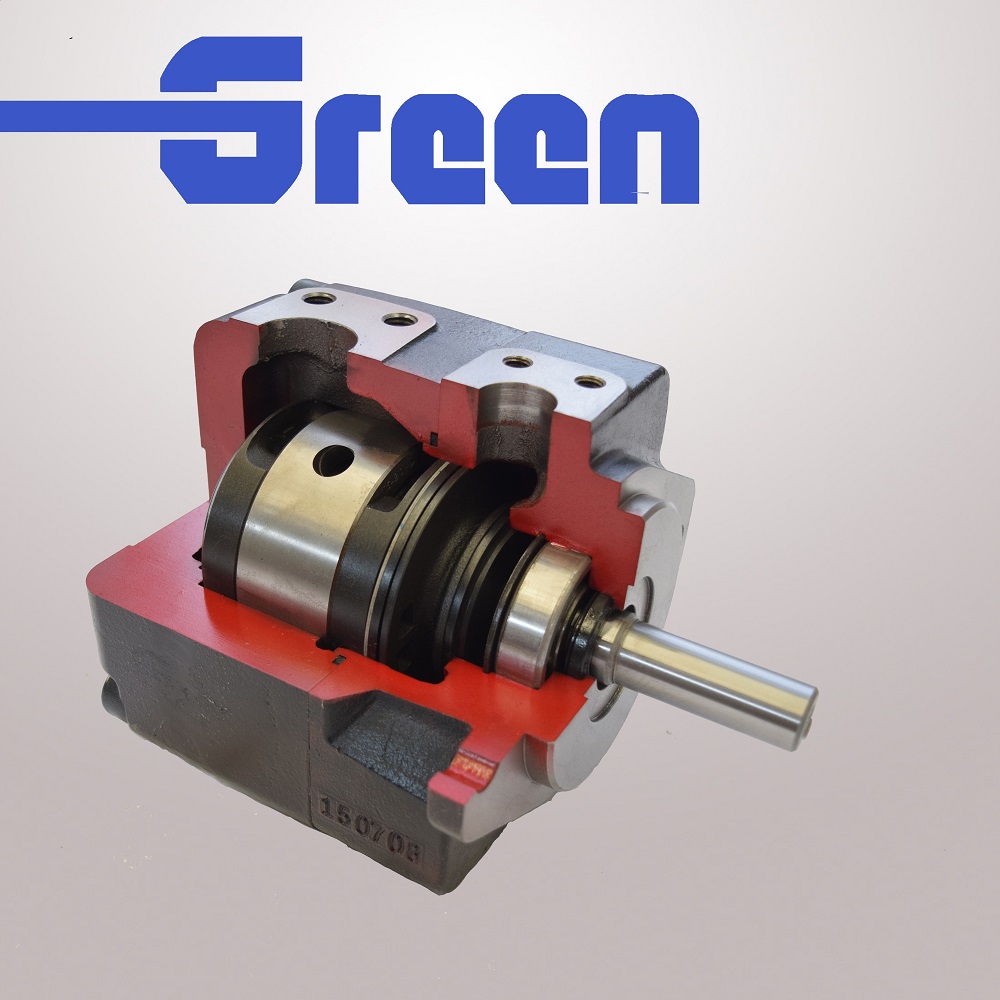

Denison T6C,T6D,T6E,T7B(S),T7D(S),T7E(S) hydraulic vane pump single pump
0 likes
China [CN] High pressure and high performance dowel pin type vane pumps are widely used for plastic machinery,casting machinery,metallurgy machinery,pressing machinery,refining machinery,construction machinery,marine-Machinery
Features
1.With dowel pin vane structure, it can work in high pressure,low noise and long lifetime.
2.This vane pump can fit wide viscosity hydraulic medium,and be started at low temperatre and work at high temperature.
3.As the vane pump adopts bilabial structure vane,it has high oil polution resistance and wide speed scope.
Model designation
| T7B | S | -B10 | -1 | R | 00 | -A | 1 | 01 |
| Series | Type code | Flow code | Shaft type | Rotation | Port positions | Design number | Sealing Level | Port dimensions |
| T7B | N0:ISO 3019Installation FlangeS:SAE J744Installation Flange |
B02,B03, B04,B05, B06,B07, B08,B10, B12,B15 |
See of shaft | (Views from shaft end of pump)R-right hand for clockwiseL-left hand for counter-clockwise | (Views from shaft end of pump)00-Opposite inlet port01-Linline with inlet02-90° CCW from inlet03-90° CW from inlet | A | 1-S1,NBR Nitrile rubber5-S5,Fluoro-rubber | 00,01,See installation dimensions |
| T7D |
B14,B17, B20,B22, B24,B28, B31,B35, B38,B42 |
|||||||
| T7E |
042, 045,050, 052,054, 057,062, 066,072,085 |
No | ||||||
| T6C | No:industrial typeM:truck typeP:truck type double seal kits |
003/B03,005/B05, 006/B06,008/B08, 010/B10,012/B12, 014/B14,017/B17, 020/B20,022/B22, 025/B25,028/B28, 031/B31 |
||||||
| T6D |
014/B14,017/B17, 020/B20,024/B24, 028/B28,031/B31, 035/B35,038/B38, 042/B42,045/B45, 050/B50,061 |
|||||||
| T6E |
042,045, 050,052, 057,062, 066,072,085 |
