HFL28 Series High Reliability DC/DC Converters

Product

Posting date : Dec 12, 2017

Click enlarge Image

Membership

Free Member Scince Dec 11, 2017

FOB Price

Min. Order Quantity

Supply Abillity

Port

Payment Terms

Package

Keyword :

dc dc converter

1 FEATURES of HFL28 Series High Reliability DC/DC Converters

16 to 40 VDC input, typical 28V
50W to 65W output power
-55℃ to +125℃ operation
Fully isolated
100MΩminimum (500V DC) isolation
Inhibit and indefinite short circuit protection
43W/in3 power density	Size: 76.33×38.23×10.16mm3
Equivalent with Interpoint’s MFL Series	Weight: 80 grams

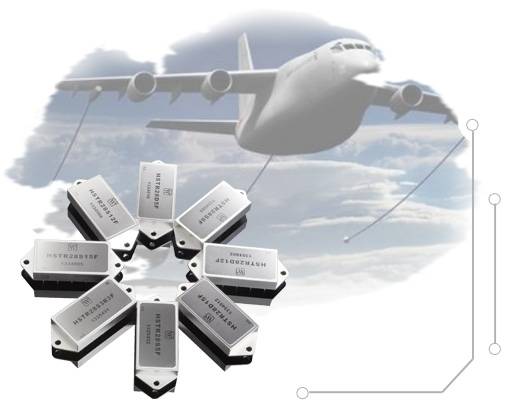

Hermetically sealed meatal cases	Figure 1 HFL28 series DC/DC converters

2 DESCRIPTION of HFL28 Series High Reliability DC/DC Converters

The HFL28 Series of DC/DC converters offer up to 65 watts of output power with high reliability. The converters are packaged in hermetically sealed metal cases, making them ideal for use in aviation, aerospace and other high reliability applications.

The HFL28 series of converters use a pulse width modulated and single ended forward topology design. The operating principle is that the sampling signal of output voltage , coupled by the opto-coupler, works together with the sampling signal of input loop current to regulate the pulse width of the controller. The magnetic feedback technology can avoid magnetic saturation and improve products reliability effectively.

Thick film hybrid techniques provide the HFL 28 Series of dc dc converter design with reliability levels and optimum miniaturazation.The design and manufacturing process of HFL28 Series of converters are in compliance with General Standards of Hybrid Integrated Circuits and detailed standards of manufacturing. Connected to a HFD-CE03 filter, the HFL28 Series of converters can achieve better electromagnetic compatibility(EMC) performance.
