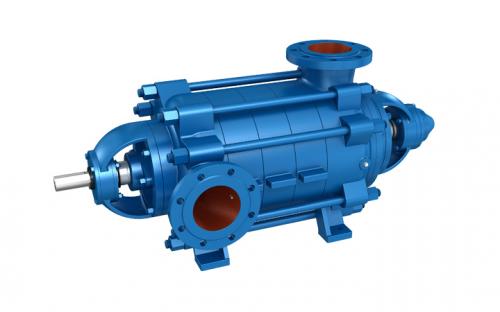

HM Type Horizontal Multistage Centrifugal Pump

Product

Posting date : Sep 18, 2017

Click enlarge Image

Membership

Free Member Scince Sep 16, 2017

FOB Price

500~200000

Min. Order Quantity

Supply Abillity

good

Port

Shanghai

Payment Terms

Shipped in 20 days after payment

Package

Wooden cases or other seaworthy packing to ensure your machine's safety

Keyword :

multistage horizonta

Category

MACHINERY & ELECTRICAL | Nuclear re | Pumps for | Centrifuga

Contact

Elaine

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

croos

HS-CODE

8413-70

Package & Delivery Lead Time

Package

Wooden cases or other seaworthy packing to ensure your machine's safety

Detailed Description

Description of Multistage Horizontal Centrifugal Pump:

HM series is the horizontal multistage ring section pumps and high pressure pump. all the impellers are stacked in single direction on the same pump shaft. The rotors are perfectly dynamically balanced and the maximum stages can be up to 12stages. HM type horizontal multistage ring section pumps has advantage of stable performance and superior in quality. HM type horizontal multistage pump is the ideal for high pressure pumps application, for water and drinking water supply system, general industry, pressure boosting system, irrigation system, in power station, heating, filtration, fire-fighting, reverse osmosis and washing plants....etc

Design feature of Multistage Horizontal Centrifugal Pump:

Long-coupled
Rolling element and plain bearing for higher temperature
The suction nozzle and discharge nozzle can be horizontal, vertical, down, any position in times of 90 degree.
Optional shaft sealing for single seal or double seal, cartridge mechanical seal and soft packing.
Standard design for stuffing box cooling jacket allows transfer high temperature liquid.
Bearing lubrication is optional for grease, ring oiled, splashed systems
Bearing type can be rolling element bearing and plain bearing for higher temperature
single entry & closed impeller
dry installation

Benefits:

Low NPSHr and high efficiency..
Many choices for material, cast iron, cast steel, all stainless steel and duplex stainless steel, bronze for your different application.
Excellent pumps with superior quality
Absolutely dynamically balanced rotor prolong the lifetime and supply stable performance.

Light Horizontal Multistage Centrifugal Pump Operation Data:

Capacity: up to 125L/s (450m3h), or as per any request.Head: up to 960m(3150ft), or as per any request.Working temperature: up to 80°CDesign pressure: 4.0Mpa/6.3Mpa/10.0Mpa/16Mpa or as per any request.Nozzle: up to 250mm or special design. Flange standard can be DIN, ANSI or other standard.

Horizontal Multistage Centrifugal Pump Main Application:

Long distance water transferring
Boiling water feeding and transferring
Fire fighting
Water system boosting
Mining industry
Power station and water plant
Offshore projects
All other application for high pressure liquid.

Horizontal Multistage Centrifugal Pump Material Available:

Pump Part	MaterialConfiguration
Pump Part	Cast Iron	Ductile Iron	Carbon Steel	SS 304	SS 316L	Duplex	Super Duplex
Casing	Cast Iron	Ductile Iron	Carbon Steel	SS304	SS316L	Duplex	Super Duplex
impeller	Cast Iron	Ductile Iron	Carbon Steel	SS304	SS316L	Duplex	Super Duplex
Shaft	SS 420			SS304	Duplex		Super Duplex
Seal housing	Cast Iron	Ductile Iron	Carbon Steel	SS304	SS316L	Duplex	Super Duplex
