mgo partition wall panel machine
0 likes
China [CN]
1.machine features
| Equipment parameters | Description |
| Raw material | Mgo/mgcl2/fiber glass mesh |
| Texture of material | steel |
| Automatic degree | Fully/semi automatic |
| Finsihed board size | Thickness:2-25mm,unlimited length ,width:1300mm |
| Color | Blue ,red,etc |
| Capacity | Maximum 1500 sheets/shift(8 hours) |

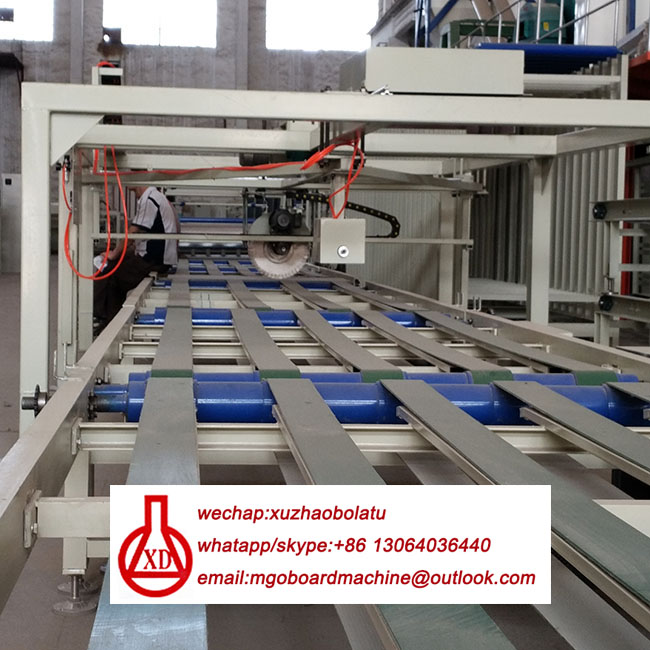

Production line for mgo board with fashionable design ,reasonable structure, stable running manufactures even thickness board in large production once through
double ways roll-in technology .This production line is equipped with shaking
device which can remove inside and outside air bubble .so our board is more
compact .in addition,we use the no-woven cloth as the separating film to increase
the toughness and the strength of the board .The machine can be adjusted
arbitrarily ,and then produce the board with the thickness of 2-25mm,the biggest
width of 1,300mm and unlimited length .so you can adjust the thickness of board
at will.
2.product features
| Product Name | magnesium oxide board |
| Standard Size | 1220mmx2440mm or 1200mmx2400mm |
| Maximum Width | 1300mm |
| Maximum Length | unlimited |
| Thickness | 3mm-25mm adjustable |
| Density | 0.8-1.2g/cm³
(Normal standard is 0.9-1.0g/cm³) |
| Basic Color | White or Grey |
| Surface | Thin slurry surface |
| Moisture Content | ≤10% |
| Water Absorbing | ≤40% |
| Bending Strength | 12-25Mpa |
| Fire Resistance | Incombustibility Class A1 |
| Thermal Conductivity | 0.19W/(m·K) |
| The rate of deformation | when pick up the moisture:0.26% |
| The shrinking rate | when heated:1.0% |
| Security | 100% does not include asbestos,formaldehyde,benzene |
| Radioactivity | Not limited by the scope of application |
3.Raw Material
Magnesium oxide(MGO), magnesium chloride, perlite, Wood dust, fiberglass mesh, non-woven cloth etc.
4.The one machine can manufacture several boardFireproof embossed door:
after province-level detection ,it has such features:fireproof ,water-proof ,sound insulation ,heat preservation,variety and low cost.Wall decorating mural painting:
The board produced by the board-making machine can be made into various
decorating art mural painting about landscape, flower-and-bird,insect-and-fish as
well as character.the product gets popularity from customers with excellent quality
and reasonable priceVent-pipe :
The polystylrene sandwich panle produced by this machine can be made into
the vent-pipe used by the central air-conditioning system and all kinds of
ventilation facility ,and the product is fireproof ,damp-proof,antiseptic,light-weight,
heat-preservation ,long-performance life and low-price.In view of the above
features,it wins much favor from users.Building mould board :
The strengthened mould plate with this technology can replace steel mould board ,bamboo&wood mould board and multiayer board .Being a high-profit product ,this board is applied widely in all kinds of concrete engineering with low-cost,high strength,long life and convenient to use .the board is high-profit product
We not only supply MgO Board Production Lines, but also provide other services
like:
1. Assemble machines at customer's factory
2. Production techniques training
3. Machine up-grade and maintenance
Click enlarge Image
