fiber cement board machine wall panel production line
0 likes
China [CN]
machine features
| Equipment parameters | Description |
| Raw material | cement/fiber glass mesh |
| Texture of material | steel |
| Automatic degree | Fully/semi automatic |
| Finsihed board size | Thickness:2-25mm,unlimited length ,width:1300mm |
| Color | Blue ,red,etc |
| Capacity | Maximum 1500 sheets/shift(8 hours) |
Production line for mgo board with fashionable design ,reasonable structure, stable running manufactures even thickness board in large production once through
double ways roll-in technology .This production line is equipped with shaking
device which can remove inside and outside air bubble .so our board is more
compact .in addition,we use the no-woven cloth as the separating film to increase
the toughness and the strength of the board .The machine can be adjusted
arbitrarily
Application:
Interior and exterior partition on steel or concrete structure building.
For New Construction, Additions,or Renovations.
fiber cement board performance
| The size | 1220x2440x5mm-30mm (4'x8'x5mm-30mm) |
| Materials | Tobermorite, Cao, Quartz sand, reinforced wood fiber |
| Fire-proof rate | Incombustibility: 180 minutes (GB/T9978-1999) |
| Density | 1.30-1.50g/cm3 |
| Heat conduction | 0.24W/MK (Jc/t564) Average |
| Moisture | <10% |
| Sound-absorption | 45db (GBJ75-84) |
| Anti-bend strength | >15MPa (GB/T7019-1997) |
| Moisture movement rate | |
| Dry shrinking rate | |
| Radiation rate | According with Standard (GB6566-2000) |
advantages
· Light weight
· Good sound insulated
· Heat Insulated
· Waterproof/ Water fast : Near about 0% moisture absorption.
· Fire proof.
· Energy Efficient
· Environmental, Ecofriendly.
· Civilized and convenient construction
· High Intensity without deformation.
| 1 | Air-dry density | ≤ (Standard index)50kg/m2 | (Test Value) 30.0kg/ m2 |
| 2 | Drying shrinkage rate of the board | ≤0.08% | 0.015% |
| 3 | Anti-breaking load | ≥1400N | 5640N |
| 4 | Anti-impact | No breakage phenomenon such as cracking after three impacts | No breakage phenomenon such as cracking after three impacts |
| 5 | Thermal resistance of main section (T=90mm) | ≥1.35(m2.k)/w | ≥1.36(m2.k)/w |
| 6 | Thermal bridges area ratio | ≤8% | 2.22% |
| 7 | Sound reduction Index | 36dB | |
| 8 | Radioactivity | None |

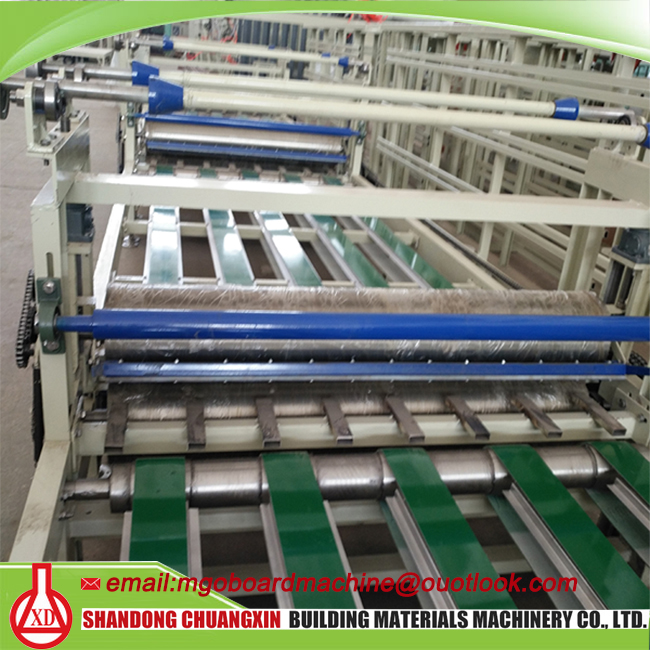

Production conditions
The production line is composed of board-making machine,glue-spreading and veneering-drying machine and glazing machine.according to the production and
the automatic degree, this production line is divided into 6 models
and three specifications ,such as large ,middle and small specification.The
production line for mgo board has :production workshop ,finished product
workshop and raw material warehouse . workshop:100---1000m2,worker:3---6person,water:ordinary water,electricity:1.1—10KW(according to different scale)
Attention
1.The technology transfer fees of the composite mgo board:6000yuan (If you
purchase our equipment,then the technology fee is free)
2.Sign the contract printed by Industry and Commerce B urear
3.We provide national grade certificate of key new product, quality and
fireproofing grade ,and train2--3 technical personnel for you till then they master
the recevant technology.
Excellect service
1)Fully life-cycle value services
2)all-around thechnical service
3)complete data specification
4)quality commitment
