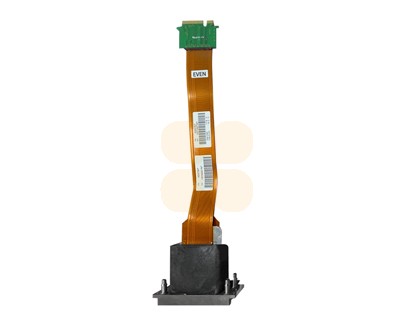

Ricoh GEN4 Printhead

The Ricoh GEN4 greyscale printhead is suitable for a range of water, solvent and UV printers. This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty. This Ricoh GEN4 is available in two different cable lengths: 19cm long and 44cm long and a choice of hose barb ink inlet or o-ring sealed ink inlet. Technical Specifications- Size: 63 x 63 x 16,2 mm (excluding cables)- Head Materials: SST, Ni and Epoxy Adhesive- Nozzle Plate Surface: Non-coated SST- Number of Nozzles: 2 x 192 nozzles- Nozzle Spacing: 0,1693 mm- Piezo Type: D33 Stacked PZT- Temperature Control: Integrated Heater and Thermistor- Operator Temperature range: Up to 60° C- Native Drop Volume: 7 pl- Drop Volume Range: 5-25 pl with greyscale- Jetting Frequency: Up to 30 kHZ- Life: 100 billion actuations per nozzle

Printer compatibility:

Agfa Jeti 1224 HDC / Jeti 1224 HDC FTR, Digitex Gunsjet SR1808 / Gunsjet SR2508 / Gunsjet SR3208 / Gunsjet SF1914 / Gunsjet UF4547, DYSS Apollo GH1600-08F / Apollo GH1600-08F / Apollo GH1600-08SF / Apollo GH1600-10FM / Apollo GH1600-12S / Apollo GH1600-12SFWFV / Apollo GH2200-08F / Apollo GH2200-08SF / Apollo GH2200-08SR / Apollo GH2200-10FM / Apollo GH2200-12S / Apollo GH2200-16SFWFV / Apollo GH2600-08F / Apollo GH2600-08SF / Apollo GH2600-10FM / Apollo GH2600-12S / Apollo GH2600-12SFWFV / Apollo GF2616-08F / Apollo GF2616-10FFW / Apollo GF2616-10FRW / Apollo GF2616-12F / Apollo GF2616-12S / Apollo GF2616-14SFW / Apollo GF2616-14SRW / Apollo GF2616-16F / Apollo GF2616-16SFWFV / Apollo GF2616-16SRWRV, Gandy Digital Domin8tor / Pred8tor
