50W solar panel

본문 바로가기


Home > Product > 50W solar panel
Product

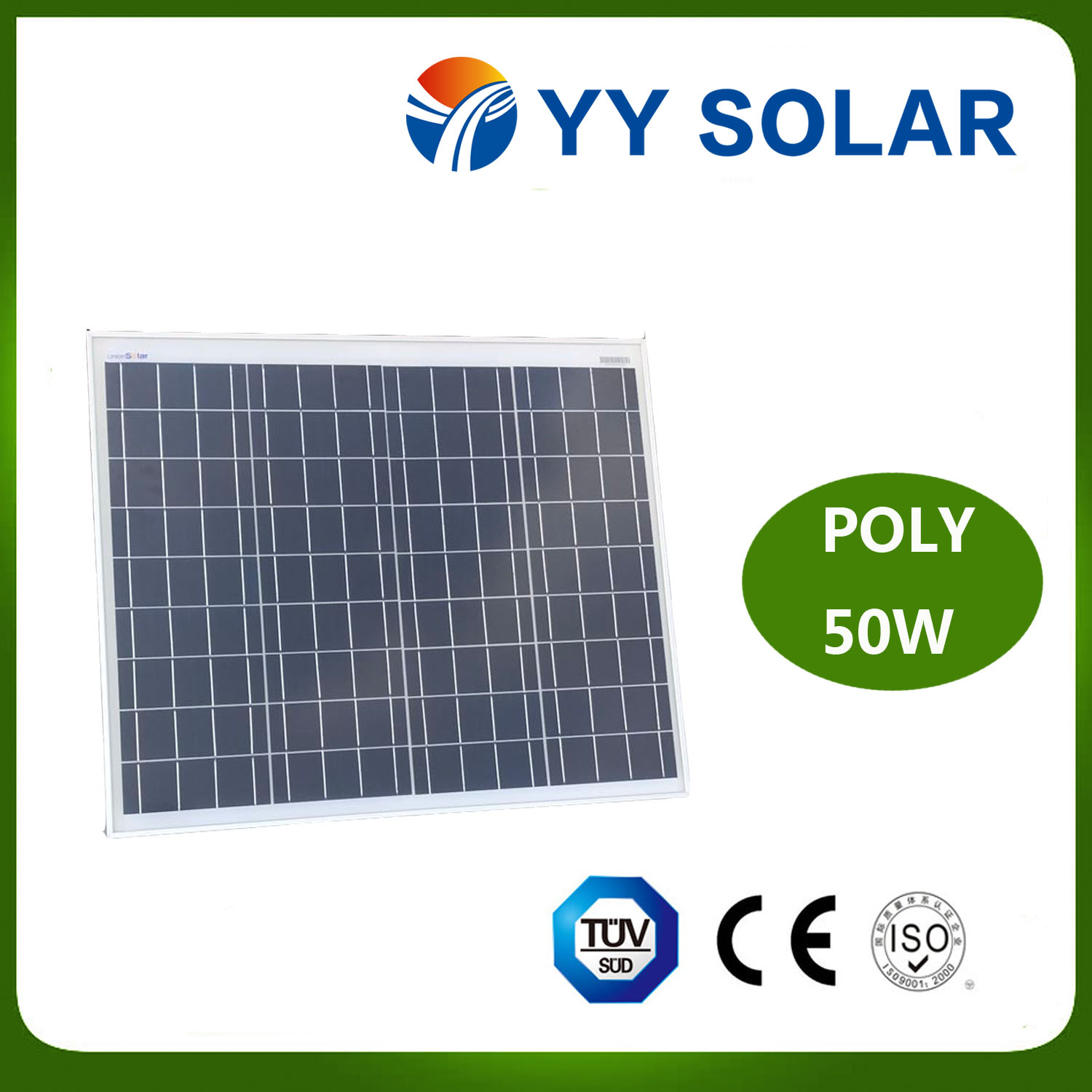

50W solar panel
Posting date : May 20, 2017
Membership
Free Member Scince Mar 21, 2017
FOB Price
10-100
Min. Order Quantity
500
Supply Abillity
20M
Port
shanghai
Payment Terms
T/T
Package
carton
Keyword :
Category
Contact
Michael
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
YY SOLAR
HS-CODE
8541-40
Package & Delivery Lead Time
Package
carton
Detailed Description
Mechanical Data
Cell type POLY 52mm*156mm
No. of cells 36 in series(4*9)
Dimensions 670*350*30
Weight 2.9KG
Electrical Data
STC:Irradiance 1000w/m²,module temperate 25℃,AM=1.5
Power 50W
Open circuit voltage(Voc) 21.7V
Max power voltage(Vmp) 17.8V
Short circuit current(Isc) 2.91A
Max Power Current     (Imp)                     2.57A
Power Tolerance ±3%
Max. system voltage 800V
Operating temp -40℃~85℃
Temp coefficient Isc 0.06%/℃
Temp coefficient Voc -0.34%/℃
Temp coefficient Power -0.42%/℃
