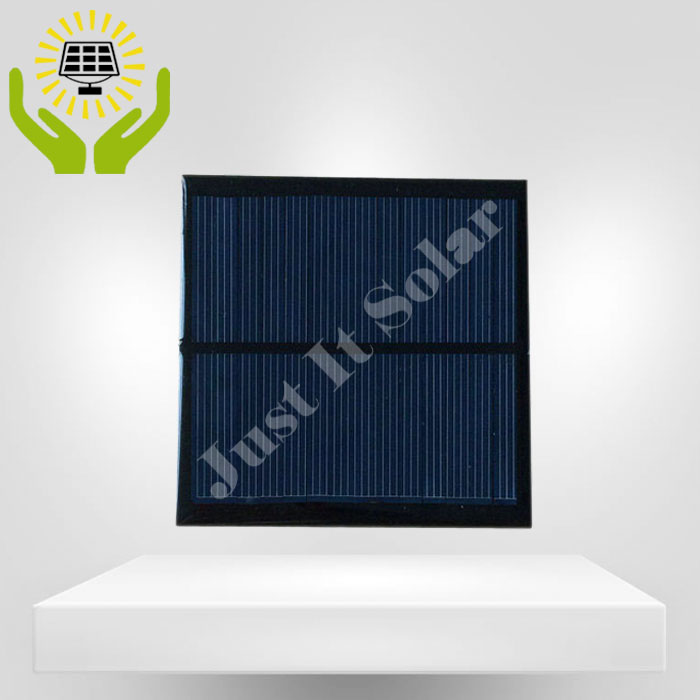

6V 150mA 90*90mm Small Epoxy Solar Panel
0 likes
China [CN] 6V 150mA 90*90mm Small Epoxy Solar Panel
|
Model No. |
JI-9090-6V150MA |
|
Sealing Material |
Epoxy resin |
|
Solar Cell |
Polycrystalline |
|
No. of Cells |
12pcs |
|
Max Output Power (Wmp) |
0.9W |
|
Max Power Voltage (Vmp) |
6V |
|
Max Power Current (Imp) |
150mA |
|
Open Circuit Voltage (Voc) |
7.2V |
|
Short Circuit Current (Isc) |
165mA |
|
Size |
90*90mm |
|
Thickness |
2.5mm |
|
Output Tolerance |
+/-5% |
|
Size Tolerance |
+/-0.3mm |
|
Operating Temperature |
-20oC to 60oC |
|
Life Span |
1-2 years |
|
Warranty |
6 months |
|
Standard Testing Conditions |
Irradiance 1000W/m2, Temperature 25oC, AM 1.5 |
