4V 100mA 60*60mm Epoxy Resin Mini Solar Cell
Posting date : Aug 11, 2017
Membership
Free Member Scince Apr 25, 2017
FOB Price
$0.5-$0.8/pc
Min. Order Quantity
1000pcs
Supply Abillity
50000pcs/month
Port
NINGBO or SHANGHAI
Payment Terms
T/T, PayPal, Western Union
Package
Solid export carton
Keyword :
mini solar cell
Category
MACHINERY & ELECTRICAL | Electrical | Diodes tra | Parts of t
Contact
Hope Zhng
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
JSUT IT SOLAR
Model Number
JI-6060-4V100MA
HS-CODE
8541-90
Package & Delivery Lead Time
Package
Solid export carton
Delivery Lead Time
15-20 days
Detailed Description

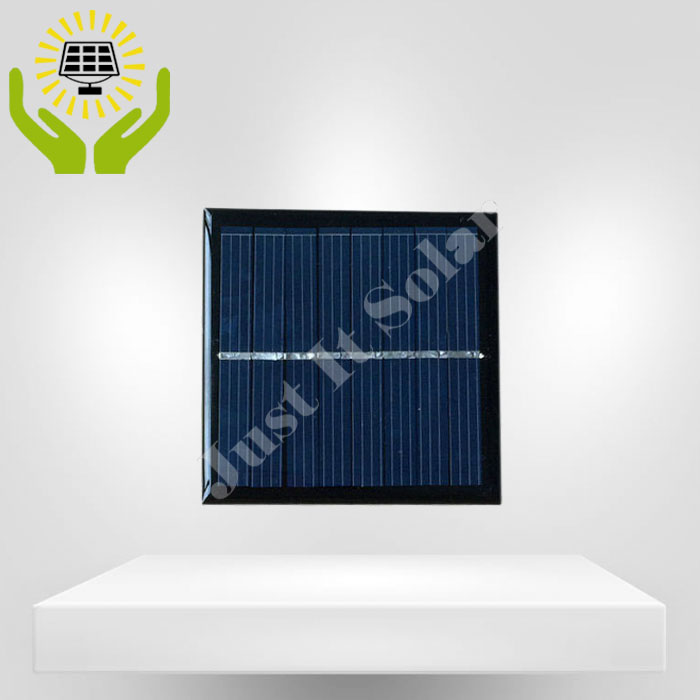

4V 100mA 60*60mm Epoxy Resin Mini Solar Cell



Model No.

 JI-6060-4V100MA

Sealing Material

Epoxy resin

Solar Cell

Polycrystalline

No. of Cells

 8pcs

Max Output Power (Wmp)

 0.4W

Max Power Voltage (Vmp)

 4V

Max Power Current (Imp)

 100mA

Open Circuit Voltage (Voc)

 4.8V

Short Circuit Current (Isc)

 110mA

Size

 60*60mm

Thickness

2.5mm

Output Tolerance

+/-5%

Size Tolerance

+/-0.3mm

Operating Temperature

-20oC to 60oC

Life Span

1-2 years

Warranty

6 months

Standard Testing Conditions

Irradiance 1000W/m2,   Temperature  25oC, AM 1.5

We can make custom mini solar panels. Please contact us freely!
