QC11Y Hydraulic CNC guillotine steel cutting machine
Posting date : Mar 31, 2017
Membership
Free Member Scince Mar 27, 2017
FOB Price
Usd10000
Min. Order Quantity
1set
Supply Abillity
80sets/month
Port
shanghai
Payment Terms
T/T,L/C,West union,DP,DA
Package
Export standard
Keyword :
Category
Contact
Jane Wu
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Hudong
Model Number
QC11Y
HS-CODE
8462-39
Package & Delivery Lead Time
Package
Export standard
Delivery Lead Time
within 30 working days after receiving deposit
Specifications

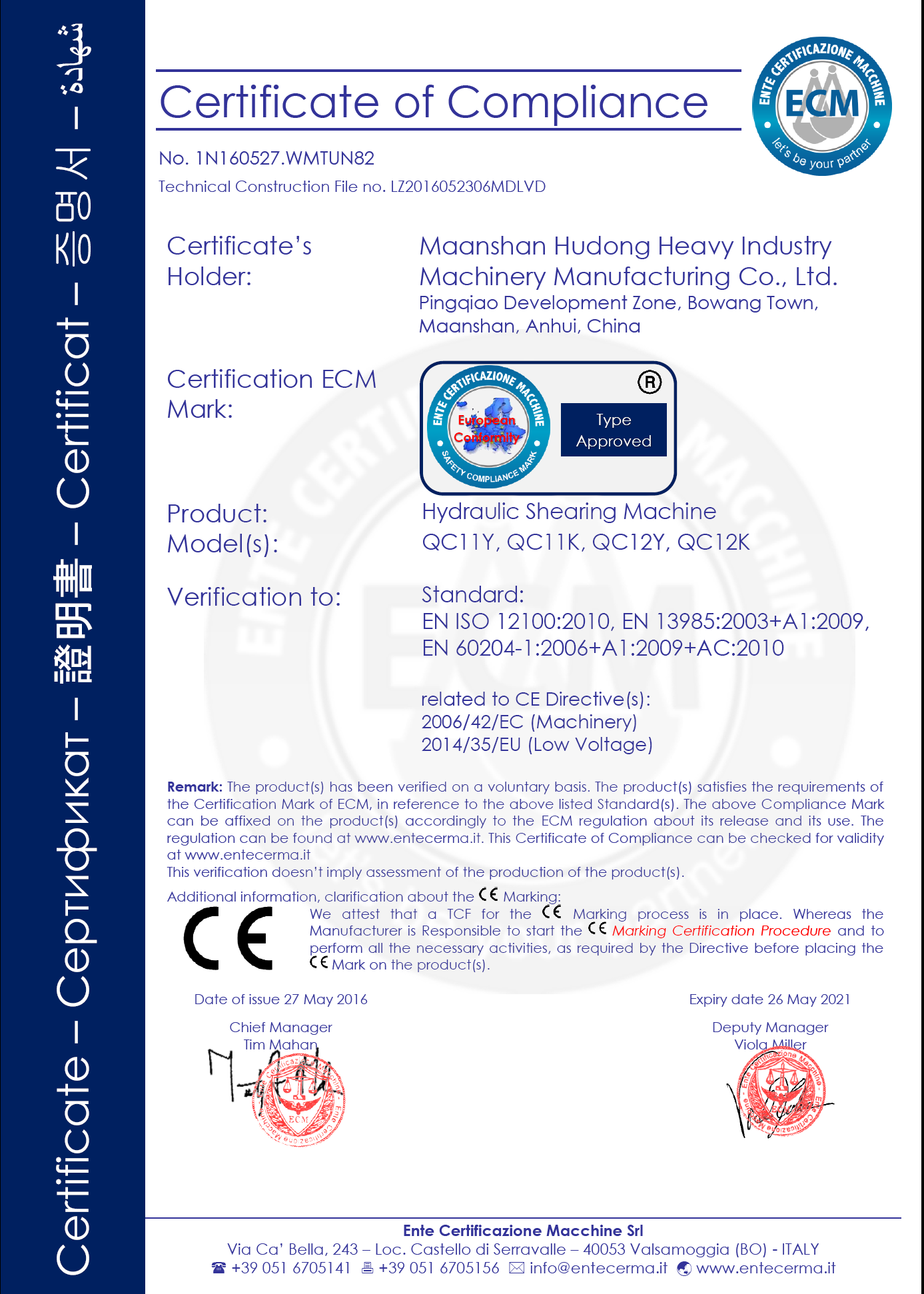

Type of Certification
CE
Reference no.
1N160527WMTUN82
Name.
Hydraulic shearing machine
Issued By
Ente Certificazione Machine Srl
Start Date (validity period)
2016-05-30
End Date (validity period)
2021-05-29
Scope
QC11Y QC11K QC12Y QC12K

Detailed Description

QC11Y Hydraulic CNC guillotine steel cutting machine

Product Description

  QC11Y Hydraulic CNC guillotine steel cutting machine

   CNC system with one axis, dual axes and three axes function, accorading to user requirements, more details,please refer to CNC instrucyions.

   Back gauge with ball screw ,linear guide and servo motor.

   Hydraulic valve-araexroth,Germany electrical device-Schneider,France high perfornance gear pump,stable and reliable.

   Make neumatic support accorading to user requirements, with higher shearing precision.



Technical data



QC11Y Hydraulic CNC guillotine steel cutting machine

Model

-QC11Y(K)

-series

Max. cutting thickness

Max. cutting width

Stroke times

Back gauge range

Shearing angle

Throat depth

 Tensile strength

Main motor

Dimension

(L×W×H)



(mm)

(mm)

(Time/min)

(mm)

(°)

(mm)

(MPA)

(KW)

(mm)

4×2500

4

2500

≥18

600

0.5-2

100

≤450

5.5

3130×1500×2070

4×3200

4

3200

≥16

600

0.5-2

100

≤450

7.5

3830×1500×2070

4×4000

4

4000

≥12

600

0.5-2

100

≤450

7.5

4630×1500×2070





Production Flow

simple guillotine steel cutting machine

Detailed Images




Packaging

 Each guillotine steel cutting machine use steel rope to fix the four angles with the container, to avoid the machinery equipment move in the container. simple guillotine steel cutting machine  Export standard wooden box package

simple guillotine steel cutting machine

Our Services

 simple guillotine steel cutting machine
