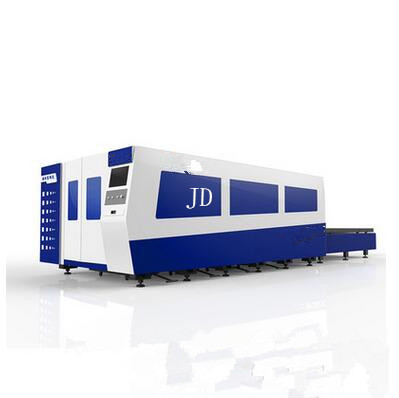

Fiber Laser Cutting Machine For Metal,Carbon Steel,Stainless Steel Aluminum cutting machine

본문 바로가기


Home > Product > Fiber Laser Cutting Machine For Metal,Carbon Steel,Stainless Steel Aluminum cutting machine
Product
Fiber Laser Cutting Machine For Metal,Carbon Steel,Stainless Steel Alu...
Posting date : Mar 28, 2017
Membership
Free Member Scince Mar 25, 2017
FOB Price
50000
Min. Order Quantity
1
Supply Abillity
5000pieces/year
Port
shenzhen
Payment Terms
TT/CASH/DP
Package
Standard export wooden case
Keyword :
Category
Contact
Kathy Tang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
JIEDA
Model Number
JD-C
HS-CODE
8456-10
Package & Delivery Lead Time
Package
Standard export wooden case
Delivery Lead Time
10days afer received the advanced payment
Detailed Description

What is fiber laser cutting?

A fiber laser is a laser in which the active gain medium is an optical fiber doped with rare-earth elements such as erbium. The way it generates its beam is distinctly different from that of a Co2 laser which uses resonators. Fiber lasers are much more ecofriendly than Co2 lasers using typically less than 50% power consumption compared to a Co2 Laser. They are also more reliable and cut parts up to 6mm thick 30-40% quicker than a Co2 Laser.

Feature of fiber laser cutting machines

1). Lower operation cost,every hour only consumed 0.5W to 1.5W electricity,cutting all kinds of metal sheet by air.2).High performance qualified fiber generator,which is high reliability and longevity of service. Max life reach to more than 100000 hours.3).Higher cutting speed and efficient,Max cutting speed can be reach 10m/min in cutting 1mm mild steel.4).Free maintenance for fiber laser generator5).Smooth cutting surface,little deformation,pretty leveling appearance.6).Import transmission parts and servo motor, high dynamic movement performance, high cutting precision.7).Dedicated software enables graphic or text into instantly designed pr processed.Flexiable and easy operation.

Advantage of fiber laser cutting machines

1.Additional power and better beam quality provide cleaner cut edges and faster cutting speeds, typically 30-40% faster on thicknesses up to and including 6mm2.Ability to cut aluminium, copper and brass where a Co2 laser can’t3.Reliability: fiber lasers exhibit high vibrational stability, extended lifetime, and maintenance-free turnkey operation4. High quality edge finish5. High peak power and nanosecond pulses enable effective marking and engraving6. Intricate parts can be manufactured easily, quicker and far more cost effectively than machining or even Co2 lasers depending on thickness

Parameter of fiber laser cutting machines
Model
XTC-F1530
Laser generator
IPG / Nlight / Raycus
Laser power
1000w
Laser wavelength
1070NM
Cutting table size
1500*3000NN
X/Y axis positioning accuracy
0.03MM/M
X/Y axis repositioning accuracy
0.05MM/M
Control System
Cypcut
Driving Mode
Double gear rack driving
Max cutting thickness
10mm for CS, 5mm for SS
Standard Collocation
Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus, remote controller, etc.


Applicable material of fiber laser cutting machine

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet,

Application Industries of fiber laser cutting machine

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.


500w
1000w
2000w
Stainless steel
3mm
6mm
10mm
Carbon steel
6mm
10mm
20mm
Aluminum
2mm
3mm

4mm


Our Service

Title goes here.

1.service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.

2. One-year warranty is provided. (The detailed reference will be written into the final contract.)

3. Professional staff for installation and training if needed.

4. Spare parts are supplying on time or doing some inventory if promising certain sales volume.

5. Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.

6. If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype.

Contact with:Mrs Kathy Tang

Dongguan Jieda Laser Technology  Co., Ltd

Address: NO.136,Wushiling Areas,Yangwu village,Dalang Town,Dongguan City,Guangdong Province, China

Tel.: (0086-769) 86260555

Mobile: (0086) 18771637721  Fax: 0086 769 86260556

Website: http://www.jdgdlaser.com
