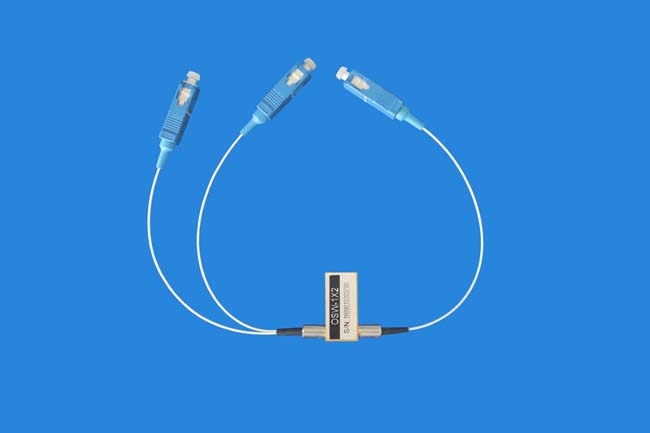

1x2 Fiber optical switch Features

Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching

1x2 Fiber optical switch Application
Optical Signal Switching and Routing
Optical Network Protection and Restoration
Optical Network Monitoring
Video Distribution
Instrumentation Resource Sharing
Military Communications

Parameters

OSW-1×2
Wavelength Range
nm
650~1310
1260~1670

Testing Wavelength
nm
650/780/850/980/1064/1310
1310/1490/1550/1625/1650

Insertion Loss
dB
Typ:0.6,Max:1.0
Typ:0.5 ,Max:0.8

Return Loss
dB
≥30
≥50

Crosstalk
dB
≥35
≥55

PDL
dB
≤0.05
WDL
dB
≤0.25
TDL
dB
≤0.25
Repeatability
dB
≤±0.02
Power supply
v
3.0 or 5.0
Lifetime
Cycle
≥ 107
Switch Time
ms
≤8
Transmission Power
mW
≤500
Operation Temperature
-40~+85
Storage Temperature
-40~+85
Weight
g
16
Dimension
mm
(L)27×(W)12.6×(H)8.5(±0.2)



1x2 Fiber optical switch Pins
Optical Path

Electric Drive

Sensor Status
1×2
1
5
6
10
3-4,7-8
2-3,8-9

Latching
P1---P2
N/A
N/A
GND
+5V
OPEN
CLOSE

P1---P3
+5V
GND
N/A
N/A
CLOSE
OPEN

Non-Latching
P1---P2
N/A
N/A
N/A
N/A
OPEN
CLOSE

P1---P3
+5V
N/A
N/A
GND
CLOSE
OPEN



1x2 Fiber optical switch Electrical parameters



Voltage
Current
Resistor
5V
Latching
4.5~5.5
36~44mA
125Ω
5V
Non-Latching
4.5~5.5
26~32mA
175Ω
3V
Latching
2.7~3.3
54~66mA
50Ω
3V
Non-Latching
2.7~3.3
39~47mA
70Ω




1x2 Fiber optical switch Ordering Information:OSW-1x2-A-B-C-D-E-F-G

A
B
C
D
E
F
G
Mode
Wavelength
Voltage
Control Model
Fiber Diameter
Fiber Length
Connector
SM:9/125um
M5:50/125um
M6:62.5/125um
85:850nm
13:1310nm
14:1490nm
15:1550nm
162:1625nm
165:1650nm
13/15:1310/1550nm
3:3v
5:5v
L:Latching
N:Non-Latching
25:250um
90:900um
20:2.0mm
30:3.0mm
05: 0.5m
10: 1.0m
15: 1.5m
OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
LP: LC/PC
LA: LC/APC
