1x1 Optical Switch

Posting date : Mar 08, 2017

Click enlarge Image

Membership

Free Member Scince Dec 13, 2016

FOB Price

us $50 per piece

Min. Order Quantity

Supply Abillity

1000 pieces per month

Port

Shenzhen

Payment Terms

T/T

Package

CARTON

Keyword :

1x1 Optical Switch

Category

MISCELLANEOUS | Optical ph | Optical fi | Optical fi

Contact

sherry zhang

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

coreray

Model Number

osw-1x1

HS-CODE

9001-10

Package & Delivery Lead Time

Package

CARTON

Delivery Lead Time

10 days

Specifications

Type of Certification

ISO9000

Reference no.

23535356

Name.

RoHS

Issued By

SGS

Start Date (validity period)

0000-00-00

End Date (validity period)

0000-00-00


Detailed Description

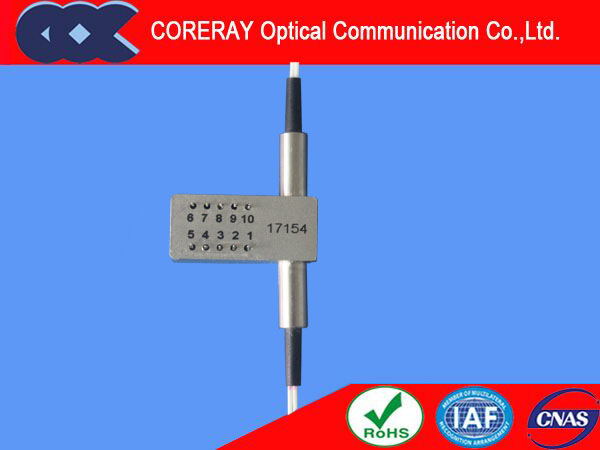

1X1T Mechanical Fiber Optic Switch

1x1T optical switch(OSW) features low insertion loss, low driving power, small size, and high switching speed. The switch is designed for use in optical fiber communication networks and measurement instruments. The switch consists of two ports that selectively transmits redirects, or blocks optical power in a fiber optic transmission line. The optical switch must be actuated to select or change between two states. 1X1/1x2T optical switch reverts to a default state upon loss of driving power or control signal.

1x1 Optical Switch Features:

High Extinction Ratio
Low Insertion Loss
High Channel Isolation
Highly Stable and Reliable
Epoxy-Free Optical Path

1x1 Optical Switch Applications：

Optical Signal Routing
Network Test Systems
Instrumentation

P1x1 Optical Switch erformance Specifications：

Parameter			Specification
Operating Wavelength (nm)			850 ，1310，1490，1550，1625
Insertion Loss (dB)			< 0.6
WDL (dB)			< 0.15
PDL(dB)			<0.02
TDL(dB)			<0.20
Channel Cross Talk (dB)			>55
Repeatability (dB)			± 0.03
Return Loss (dB)			> 55
Switching Speed (ms)			< 10 (typ.5)
Drive Voltage (V)			3 or 5
Power Handling (mW)			500
Durability (cycles)			10 million
Operating Temperature (°C)			-20 ~ +80
Storage Temperature (°C)			-40 ~ +85
Dimensions (LxWxH) (mm)			27x12.6x8.5

1x1 Optical Switch Electric Configuration：

Type	Pin	Electric Drive				Status sensor
1×1	channel	1	5	6	10	2-3	3-4	7-8	8-9
Latching	P1--P2	V+	GND	--	--	Open	Close	Close	Open
Latching	P1-/-P2	--	--	GND	V+	Close	Open	Open	Close
Non-latching	P1--P2	V+	--	--	GND	Open	Close	Close	Open
Non-latching	P1-/-P2	--	--	--	--	Close	Open	Open	Close

1x1 Optical Switch Ordering Information：OSW－1×2T－A－B－C－D－E－F－G－H

A	B	C	D	E	F	G	H
Mode	Wavelength	Voltage Type	Control Model	Fiber Type	Fiber Diameter	Fiber Length	Connector
S:SM M:MM	85: 850nm 13: 1310nm 14: 1490nm 15: 1550nm 162: 1625nm 165: 1650nm 13/15:1310/1550nm X:Others	3: 3V 5: 5V	L: Latching N:Non- Latching	5:50/125 6:62.5/125 9: 9/125 X: Others	25:250um 90:900um 20:2.0mm 30: 3.0mm X: Others	05:0.5m 10:1.0m 15:1.5m X:Others	OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others
