220kw Diesel Generator | Global Trade leader ecrobot

Product

220kw Diesel Generator

Posting date : Dec 21, 2016

Click enlarge Image

Membership

Free Member Scince Dec 21, 2016

FOB Price

122364

Min. Order Quantity

Supply Abillity

Port

Foshan

Payment Terms

T/T

Package

common box

Keyword :

Diesel Generator

Category

MACHINERY & ELECTRICAL | Electrical | Electric m | AC generat

Contact

Mia

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

WAGNA

HS-CODE

8501-62

Package & Delivery Lead Time

Package

common box

Specifications

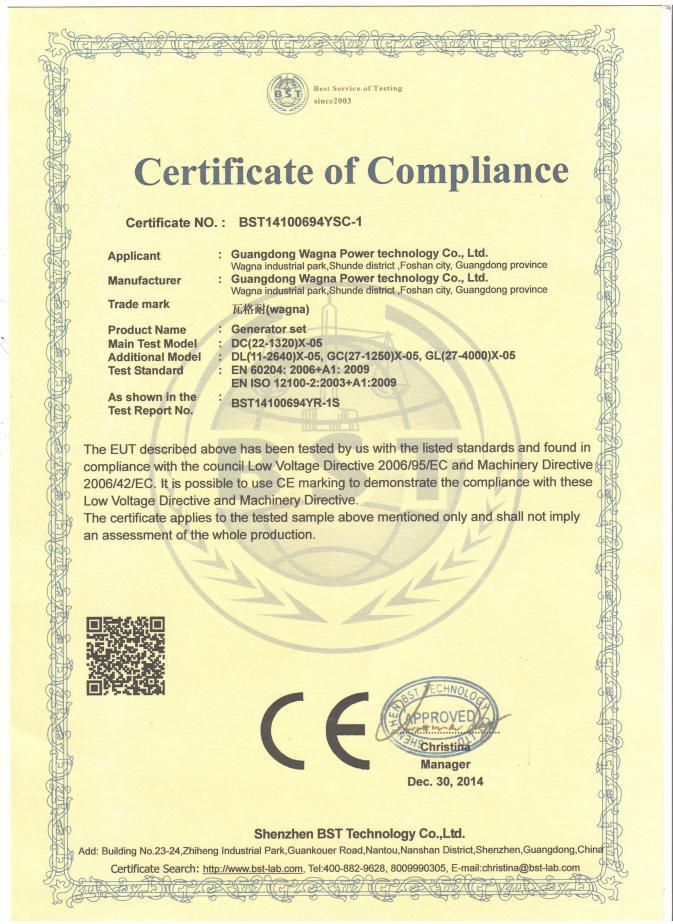

Type of Certification

Reference no.

BST14100694YSC-1

Name.

Issued By

Start Date (validity period)

0000-00-00

End Date (validity period)

0000-00-00


Detailed Description

Wagna DC series generator unitsSummary: Wagna DC series generator units choose domestic top brand diesel engine, facilitated with Wagna motor, Wagna intelligent soft ware control system and efficient coolant heat sink. We strictly comply ISO3048 & ISO0008528 standards, to guarantee 100% rated output while altitude <1000m, ambient temperature 40°C.Wagna DC Series generator units are facilitated with multiple protecting devices, it's also capable of fillu automatic start up, protecting, recording, switching, monitoring; with multi units parallel connecting & remote communication. In addition, effective shock proof is pre installed inside of the fixed frame, which request no special treatment to the basement, the integrated frame oil tank is recommended for mid/ small size generator units. Characteristics:Wagna DC Series generator units are designed, inter exchangeable parts are used for flexible usage and maintenance. It is widely welcomed and accepted for reliability, economy, low cost and easy maintenance.

Model of Gen-set	DC44Y-50
	Prime	Standby
Power of Gen-set (KW)	220	220
Power of engine (KVA)	275	313
Model of engine	SC13G355D2
Manufacture of engine	Shanghai Diesel Engine Co.
Configuration of engine	Inline 6 cylinders, four stroke,water cooling, naturally aspirated
Cooling method of engine	40°C water tank radiator, cooling fan with fan belt drive, safety shield
Engine speed control	High precision electronic speed control system
Start mode	24V DC electric start, and equipped with silicon rectifier charging generator
Fuel System	Mechanical pump
Total engine displacement(L)	12.9
Bore*Stroke(mm)	135*150
Fuel Consumption of 100% load(g/kw·h)	200
Oil Capacity (L)	33

Manufacturer of Generator	WAGNA
Rated voltage / frequency / power factor	400V/230V, 50Hz, 0.8 hysteresis, three-phase four wire
Steady-state frequency change rate	Better than 5%
Insulation Class / Protection Grade	Class H/IP22
Telephone influence factor / harmonic coefficients	TIF<50/THF<2%
Maximum noise level (dB)A	≤115
Standard accessories	A start battery and a connecting wire,exhaust pipe, corrugated pipe, flange, damping muffler of a base, a shock absorber
Dimension (mm)	286010401600
Weight (kg)	2900

Ps. Data of above table changes sometime, for reference only.

Standard components Engine Generator40ºC coolant tankIndustrial silencer Steel base frameMaintenance free battery / cable / recharger Shock damperOut put breaker Intelligent control pena Standard tools

Optional components 50ºC coolant tank Civil silencerFire extinguishing type silencer of heavy industry Heavy duty air filterElectric heater for coolant shallFuel heater for coolant shall Oil / water separatorBase frame fuel tank / normal fuel tankAutomatic engine oil supply system Automatic fuel supply system Automatic telecom control system Triple remote telecom control system Automatic parallel power grid system Automatic power switch penal Special toolsSpecial trailer platformSound proof and heat proof case
