Membrane English Keyboard Touch Panel With Window
Posting date : Nov 09, 2016
Membership
Free Member Scince Oct 18, 2016
FOB Price
$3
Min. Order Quantity
100pcs
Supply Abillity
800000000pcs/per month
Port
Shenzhen
Payment Terms
T/T,Western Union
Package
Carton boxes or according to customers' requirements to get enough protection for goods in export transportation
Keyword :
Category
Contact
vincent
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Chunyip
Model Number
CY001
HS-CODE
-
Package & Delivery Lead Time
Package
Carton boxes or according to customers' requirements to get enough protection for goods in export transportation
Delivery Lead Time
Shipped 15 days after the payment
Specifications

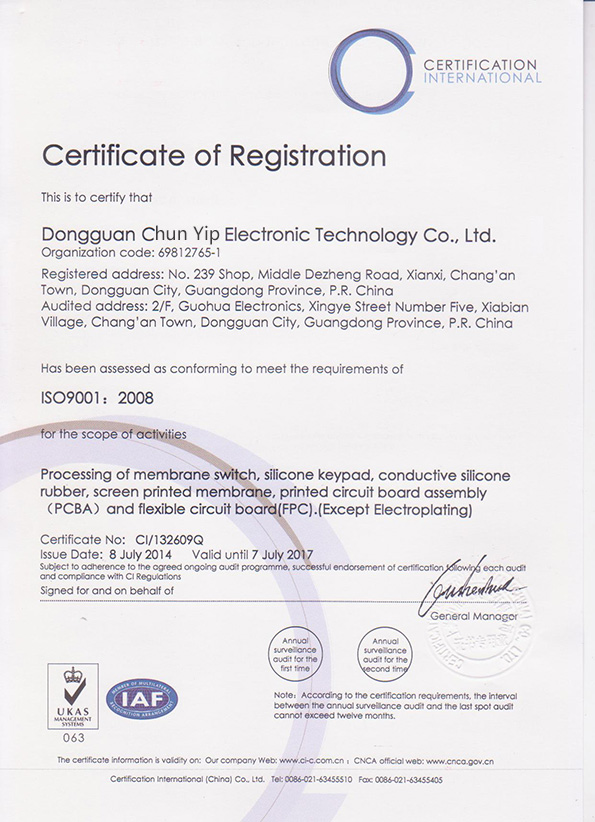

Type of Certification
ISO9001:2008
Reference no.
CI/132609Q
Name.
ISO
Start Date (validity period)
2014-07-07
End Date (validity period)
2017-07-07
Scope
Membrane switch/Rubber keypad/comductive silicone rubber/screen printed membrane/printed circuit board assembly

Detailed Description
Membrane English Keyboard Touch Panel With Window

 We work closely with customers to design highly engineered, custom solutions based on customers' requirements and our 15 years experience in membrane switches, PCB/FPC/RUBBER Assemblies and other value-added services.



One-stop solutions for what you expect are below:

1. Highly illuminated graphic overlay with silk screen/ off-set / gradient / digital printing2. Membrane swith keypad with integrated metal domes, SMT LEDs, capacitors, resistors,diodes etc.

3. ESD production, IP67 and Chemical / UV/ scratch resistant to provide long life cycle in harsh environment4. PCB/FPC/RUBBER/FFC Assemblies with reflowing and ultrasonic soldering5. Latest LGF/LED/EL backlight 6. flat type, embossed type, metal dome, polydome with good tactile feedback

7. Can meet main specifications as below:



Electronic Characteristic
<35V ( DC )   <100mA   1W
Life Expectancy
flat type ≥ 500 million times, tactile type: ≥ 100 million times
  Contact  Resistance
40Ω--500Ω (According the trace length and materials to confirm)
Operation Temperature
-25 °c ~ + 80 °c 90% RH or less
Insulation resistance
>100MΩ 250V DC
StorageTemperature
-25 °c ~ + 85 °c
Withstand Voltage
125V AC for 1 minute
Humidity
+ 40 °c   90 % ~ 95%   240 hours
Operation Force
50-500g
Switch stroke
flat type 0.1-0.5mm, tactile type 0.6-1.5mm



Packaging & Shipping

Carton boxes or according to customers' requirements to get enough protection for goods in export transportation



Our Services

 1. Custom design highly engineered for membrane switch, keyboard, graphic overlay, labels

2. Membrane switch manufacturing

3. Assemblies integrated with PCB/FPC/RUBBER KEY/METAL BACKER/PLASTIC HOUSING

4. Silk screen printing, gradient printing, off-set and digital printing

5. Laser cutting

6. Value-added service at supply of metal dome, LED, capacitor, resistance, metal parts, transformers

7. 100% inspected and function tested in-house before shiment for zero-defect quality assurance





Company Information

Founded in 2000, Chun Yip has 15 years of experience in the production and development of membrane switch products which are suitable for a variety of applications. We provide One-stop OEM/ODM solutions for membrane switches for customers from anywhere in the world.  Our factories are ISO 9001:2000 certified, ensuring production and supply-chain reliability. All products are 100% inspected and tested before package and shipment for zero-defect quality assurance .

Web:www.chunyip.net



Phone:+86- 13825736925
