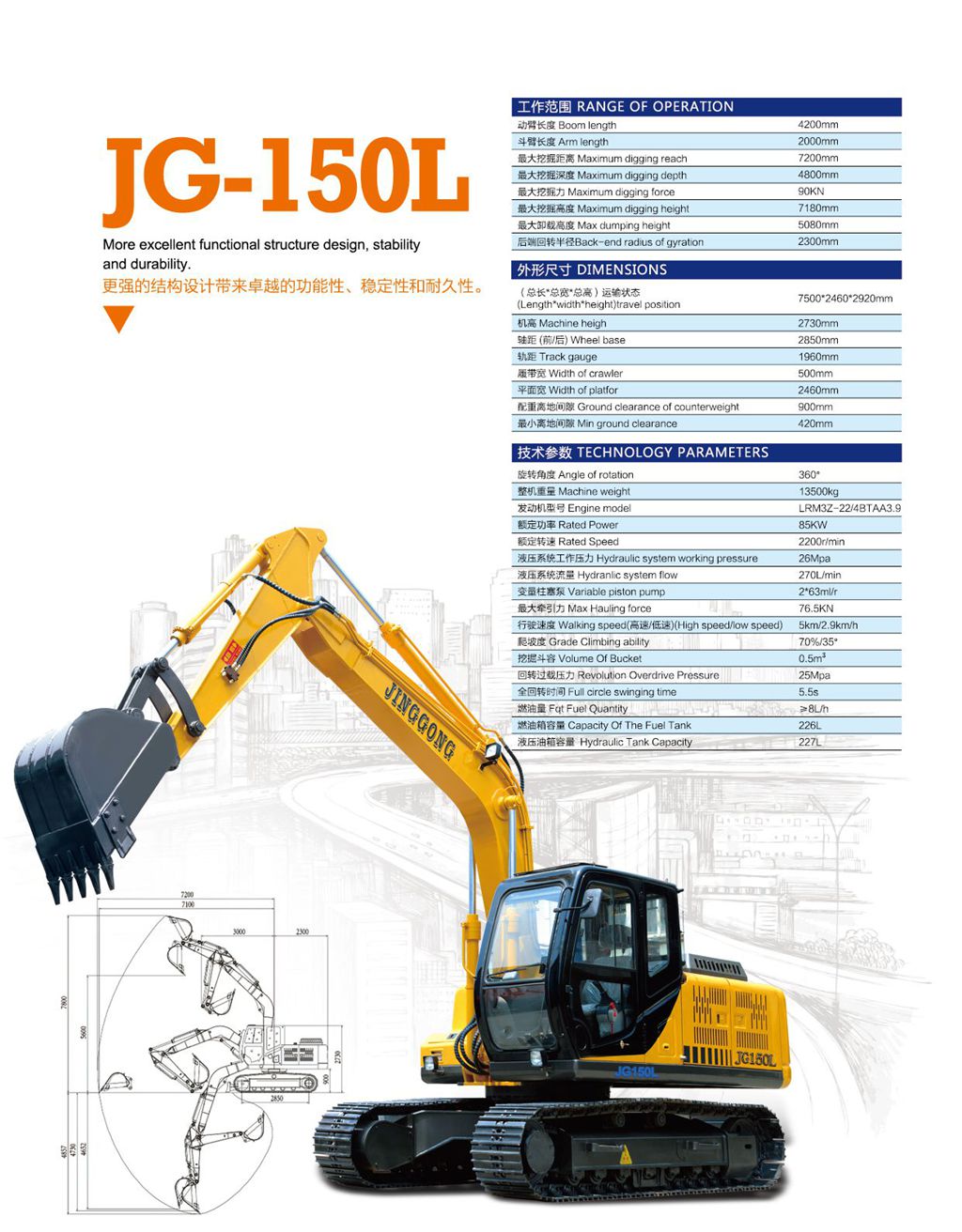

JG-150L Tech specification of crawler excavator:
Range of operation
Boom length 4200mm
Arm length 2000mm
Maximum Digging Reach 7200mm
Maximum Digging Depth 4800mm
Maximum Digging Force 90KN
Maximum Digging Height 7180mm
Maximum Dumoing Height 5080mm
Back-end radius of gyration 2300mm
Dimensions
(Length*width*height)travel position 7500X2460X2920mm
Machine Height  2730mm
Wheel base 2850mm
Track Gauge 1960mm
Width Of Crawler 500mm
Width Of Platform  2460mm
Ground clearance of counterweight 900mm
Min ground clearance 420mm
Tech performance and specification
Angle of rotation 360°
Machine weight 13500kg
Engine model LRM3Z-22/4BTAA3.9
Rated Power 85KW
Rated Speed 2200r/min
Hydraulic system working pressure 26Mpa
Hydranlic system flow 270L/min
Variable piston pump 2*63ml/r
Max Hauling force 76.5KN
Walking speed(High speed/low speed) 5km/2.9km/h
Grade Climbing ability 70%/35°
Volume Of Bucket 0.5m3
Revolution Overdrive Pressure 25Mpa
Full circle swinging time 5.5s
Fqt Fuel Quantity  ≥8L/h
Capacity Of The Fuel Tank 226L
Hydraulic Tank Capacity  227L
