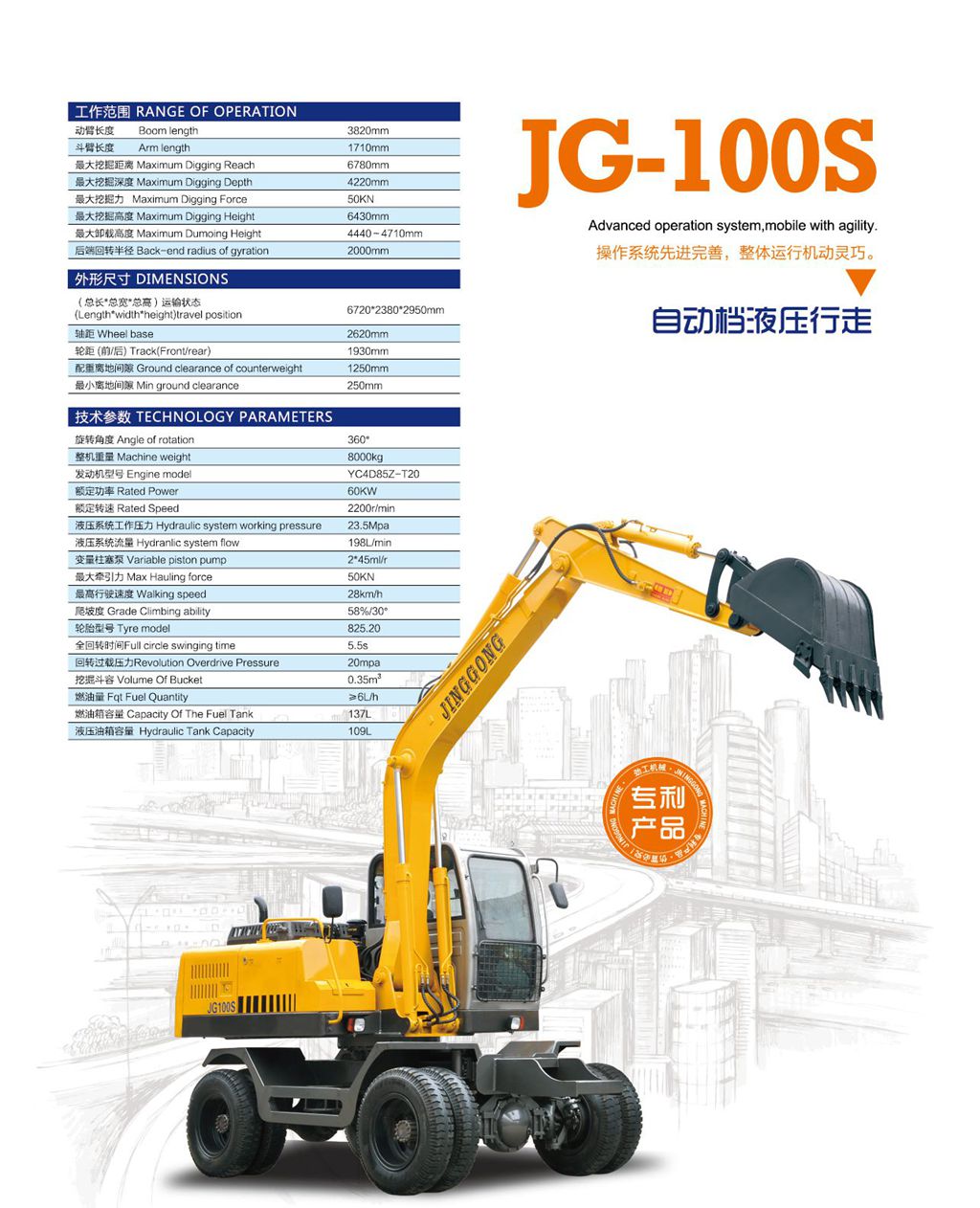

JG100S Tech Specification of wheeled hydraulic excavator:
Range of operation
Boom length 3820mm
Arm length 1710mm
Maximum Digging Reach 6780mm
Maximum Digging Depth 4220mm
Maximum Digging Force 50KN
Maximum Digging Height 6430mm
Maximum Dumoing Height 4440~4710mm
Back-end radius of gyration 2000mm
Dimensions
(Length*width*height)travel position 6720*2380*2950mm
Wheel base 2620mm
Track(Front/rear) 1930mm
Ground clearance of counterweight 1250mm
Min ground clearance 250mm
Tech performance and specification
Angle of rotation 360°
Machine weight 8000kg
Engine model YC4D85Z-T20
Rated Power 60KW
Rated Speed 2200r/min
Hydraulic system working pressure 23.5Mpa
Hydranlic system flow 198L/min
Variable piston pump 2*45ml/r
Max Hauling force 50KN
Walking speed 28km/h
Grade Climbing ability 58%/30°
Tyre model 825.20
Full circle swinging time 5.5s
Revolution Overdrive Pressure 20Mpa
Volume Of Bucket 0.35m3
Fqt Fuel Quantity  ≥6L/h
Capacity Of The Fuel Tank 137L
Hydraulic Tank Capacity 109L
