Mobile Heads Saddle Hole NC Cutting Machine-MAK
Posting date : Jul 08, 2016
Membership
Free Member Scince Jun 29, 2016
FOB Price
$1000-10000
Min. Order Quantity
1 set
Supply Abillity
50sets/month
Port
shanghai
Payment Terms
T/T,LC,CIF,FOB
Package
aluminium alloy box, wood box and master carton box packing
Keyword :
Category
Contact
merry
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
MAK
Model Number
MAK-15,MAK-16,MAK-17
HS-CODE
8456-20
Package & Delivery Lead Time
Package
aluminium alloy box, wood box and master carton box packing
Delivery Lead Time
7 days
Detailed Description

 series mobile head pipe cutting machines are upgraded portable saddle hole cutting machines with multi-functions.They could cut larger holes on the pipe head and pipes in multi-orientations to achieve a satisfied cutting solution.This series cutting machines represent the highest cutting skills in pipe cutting filed.

Products Features:

  1. Smoothly,accurately cut and bevel .
  2. Light and portable for more occasions working .
  3. Positioning by laser to achieve precise cutting process .
  4. With remote controller,highly intelligent but simple to operate .
  5. With magnet base,easy to install and removal by only one man .
  6. Build-in program system in the controller,no need tie in  with CAD skill .
  7. Cutting methods could be flame cutting, plasma cutting and water jet cutting .
  8. Able to cut pipes with spherical head & torispherical head & spherically dished head.
  9. Easy to cut orthogonal or eccentric holes on pipes with stainless steel or carbon steel materials.
  10. Meet saddle hole cutting of heads in the national standard (GB 150.3 2011) pressure vessel design.





Products Parameters:

Oreder No. Model No. Functions Bevel Angel Cutting Cource Vertical adjustment Holes Range Weight
2-101-0005 MAK-15 cut orthogonal holes on pipe-head ±45° Oxy-Acetylene 0-300mm 50-600mm 50kg
2-101-0006 MAK-16 cut orthogonal and eccentric holes on pipe-head and pipes ±45° Oxy-Acetylene 0-300mm 50-600mm 52kg
2-101-0010 MAK-17 cut orthogonal and eccentric holes on pipe-head and pipes from multi-directions ±45° Oxy-Acetylene 0-300mm 50-600mm 80kg

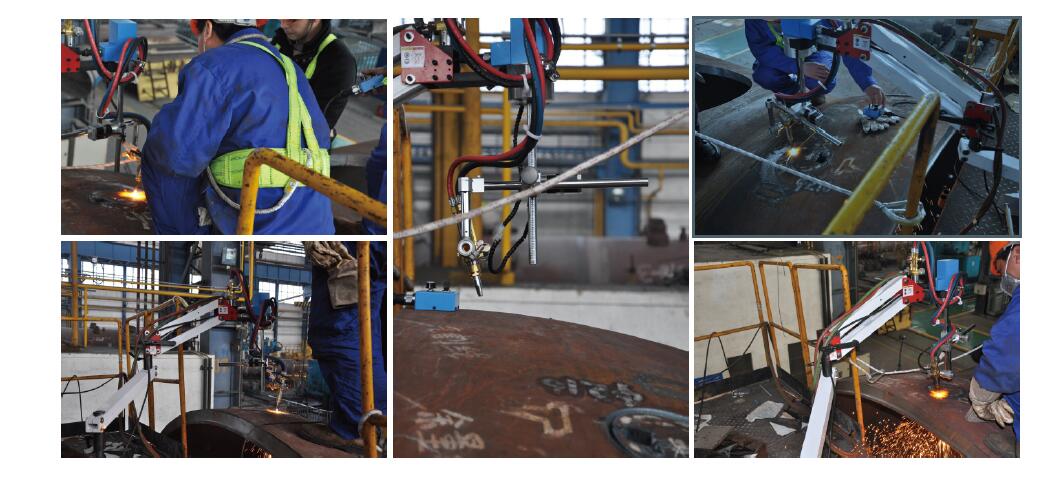

Application Cases:


https://youtu.be/EWye8vGZD0Y
