14inches cutter suction dredger with high capacity
Posting date : Jul 01, 2016
Membership
Free Member Scince Jun 27, 2016
FOB Price
150000 1100000$
Min. Order Quantity
1set
Supply Abillity
30 sets/year
Port
Qingdao, Tianjin,China
Payment Terms
T/T, L/C
Package
in containers or in bulk
Keyword :
Category
Contact
Stephanie
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Julong
Model Number
JLCSD350
HS-CODE
8474-80
Package & Delivery Lead Time
Package
in containers or in bulk
Delivery Lead Time
within 50days
Specifications

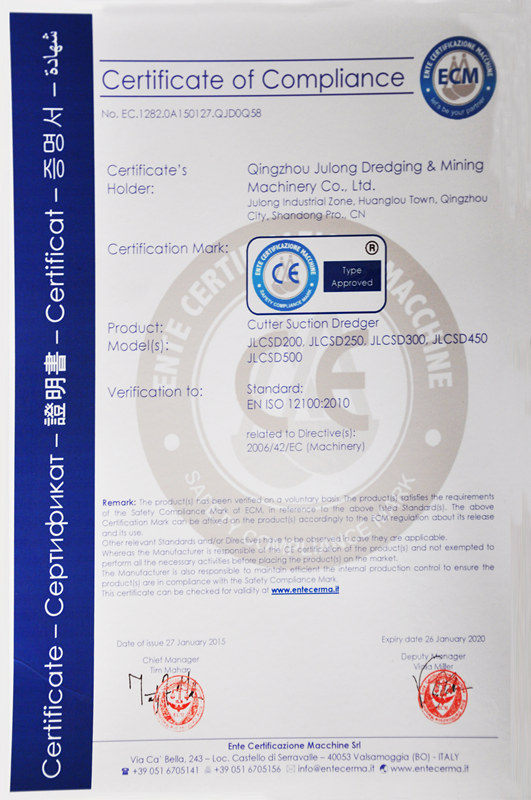

Type of Certification
SAFE
Reference no.
ENISO121002010
Name.
CE
Start Date (validity period)
0000-00-00
End Date (validity period)
0000-00-00

Detailed Description

Cutter Suction Dredger



Product description

JLCSD series dredgers can apply to most kinds of geologic structures and can be widely used in mineral digging,port dredging and reclamation works. By absorbing advanced technology of Dutch and American related products, this series of dredgers show their characteristics of rational design,all hydraulic control,simple operation,little maintenance and strong power. The capacity of JLCSD dredgers range from 100m3/hr to 1000m3/hr,dredging depth range from1m to 25m and discharge distance range from 500m to 3000m,which can satisfy different work demands.



How the dredger work

The spud  is drawn in, and the anchors are placed at a sufficient distance outside the cut. The ladder is then  lowered and the suction mouth submerged, before the pump is started. Water flow then begins and the cutter starts to rotate. Finally, the ladder is lowered and the soil-water mixture can be sucked up.



There are three basic operations involved in the moving or repositioning of the dredger in order to begin production. These are:

  • Swing movement

The winch,anchor,and cutter is connected by wire rope.When the anchor is hauled by starboard winch  and paid out of the portboard winch ,the cutter moves right.When the anchor is hauled by portboard winch and paid out of the starboard winch,the cutter moves left.The portboard winch and starboard winch alternately performs the task of hauling and paying-out,meaning the cutter follows an arc from starboard to portboard  and back again.

  • Stepping

The spude  includes main spud and auxiliary spud.When the dredger is working,the main spude is dragged into the soil to fix the machine and the other is in the air.When the dredger needs to move forward,it swings at a certain angle .The auxiliary spud is pushed in the ther earth by hydraulic ram,and the main spude is pulled up.Then the dredger moves forward step by step.

  • Movement of the anchors

When a certain distance hs been covered while in the same position,the anchor must be moved forward to guarantee the dredger work normally.

Parameter

Tyep JLCSD150 JLCSD200 JLCSD250 JLCSD300 JLCSD350 JLCSD450 JLCSD500
    Pump Capacity(m3/hr)  500  800  1200  2000  2800  3500  5000
 Dredging depth(m)  8  10  10  14  15  16  18
 Engine Power(kw)  224  336  540  746  895  1231  1686
 Cutter Diameter(m)  0.8  1  1.3  1.5  1.7  2.0
discharge distance(m)  800  1000  1000  1500  1500  1500  2000
 Suction/ Discharge pipe(mm)  250/200  300/250  350/300  450/400  600/500  650/550  700/650
 Operation system  PLC and hydraulic system control



Wide Application

  • Harbour construction
  • Land reclamation/hydraulic filling
  • Coastline protection
  • Beach replenishment
  • Maintenance dredging
  • Canal Construction
  • Deepening ports,canal,lake,river,lagoon
  • Earth moving

Dredger features

  • Modular design:

 the pontoons and main spare parts are connected by the bolts and nuts,which means the dredger can be dismantled in the factory and mounted in the construction sites. of course,the delivery time will be reduced a lot by containers.

  •  world -class spare parts:

we use the best parts like commins disel engine and simmens PLC controlling system,shijiazhuang pump.......Also ,we build a efficient system to optimize the flow the production so as to guarantee the quality and function of the dredgers.

  • Flexible in use:

the dredgers can be adapted to different circumstance like river and lake. The material like sand,stones,mud,salt can be easily sucked and discharged to the destination place.

Photo Gallery



Spare Parts

Credentials and Honors

Our promise

  •    Julong company signs a long-time after-sales service agreement with customers.
  •    We provide rational and practical design according to customers' request.
  •    We send engineers to assemble and test the machine within the period as agreed in the  contract.
  •   Within warranty period, we provide free repair if quality problems emerge.
  •   We provide free training of operation and maintenance for customers.
  •   We supply high quality accessories in low price.
  •   We make an excellent filing of customers for long-term following-up service.

Package and Delivery

The package can be made according to customers' demand and will be delivered by container or bulk
