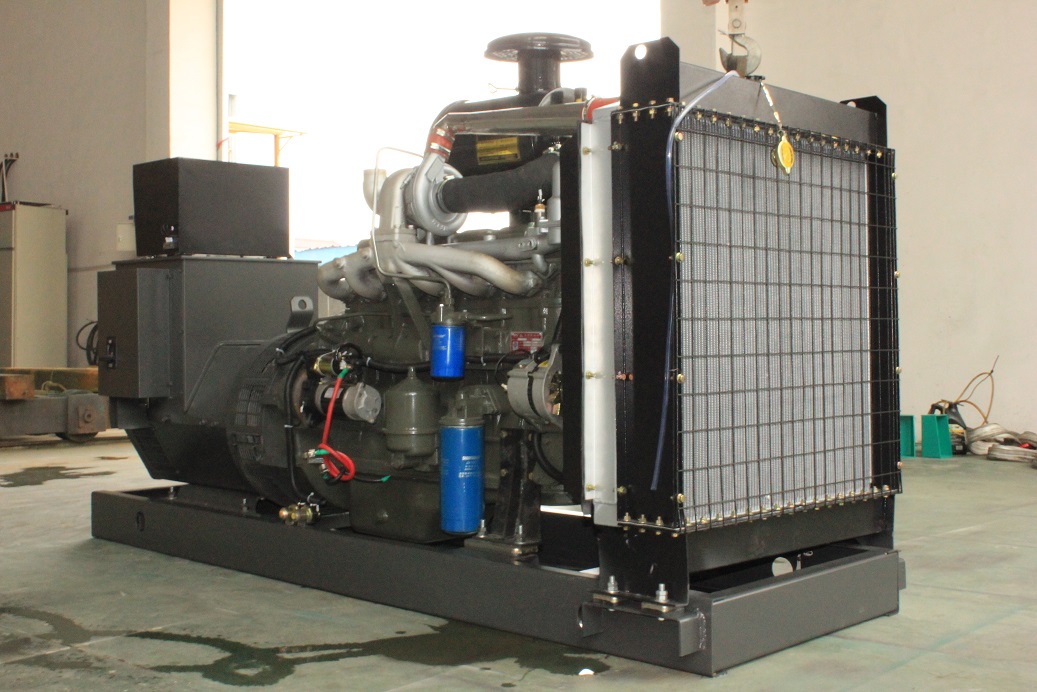

Water-Cooled Open Type Cummins Diesel Generator with CE Approved

Product

Posting date : Dec 22, 2015

Click enlarge Image

Membership

Free Member Scince Dec 21, 2015

FOB Price

5000

Min. Order Quantity

Supply Abillity

10000

Port

Shanghai

Payment Terms

Package

Bulk

Keyword :

Cummins Diesel Gener

Category

MACHINERY & ELECTRICAL | Electrical | Electric g | Electric g

Contact

Sara

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

AGLG

HS-CODE

8502-12

Package & Delivery Lead Time

Package

Bulk

Detailed Description

Cummins Generator Technologies is part of Cummins Inc,. a global power leader, incorporating complementary business units that design, manufacture, distribute and service engines and related technologies, including fuel systems, controls, air handling, filtration, emission solutions, and electrical power generation systems. And Cummins was acknowledged as the world leader in generators in the range 8 KVA to 2000 KVA.Our advantages:1. Cummins engine2. Mecc Alte S.PA (Italy) Alternator3. (UK) DEEP SEA Control SystemWarranty Time: 1 year or 1000 running hours, which occurs the firstAlternator Warranty: 2 Year No Time Limited

Start Method:				24V DC Start Battery
Accessory:				Battery, wire, exhaust pipe, muffler, damper, breaker
Altitude:				≤1000m
Engine Specifications
Manufacturer:				Dongfeng Cummins Engine Co., Ltd
Model:				6CTAA8.3-G2
Air Intake System:				Turbo, Air/Air cooling
Fuel System:				PB/W type fuel pump
Cylinder Arrangement:				6 in line
Displacement:				8.3L
Bore and Stroke:				114×135 mm
Compression Ratio:				16:1
Rated RPM:				1500rpm
Maximum Output Power:				203KW/276HP
Governor Type:				Electronic
Exhaust System
Exhaust Gas Flow:				29.1m3/min
Exhaust Temperature:				545
Max Back Pressure:				10kPa
Air Intake System
Max Intake Restriction:				6.35kPa
Burning Capacity:				11.2m3/min
Air Flow:				300m3 /min
Fuel System
100%( Prime Power) Load:				205 g/Kw.h
75%(Prime Power) Load:				206 g/Kw.h
50%(Prime Power) Load:				211 g/Kw.h
100%( Prime Power) Load:				41.4L/h
Oil System
Total Oil Capacity:				24L
Oil Consumption:				≤4g/kwh
Engine Oil Tank Capacity:				18.9L
Oil Pressure at Rated RPM:				276-414kPa
Cooling System
Total Coolant Capacity:				40L
Thermostat:				83-95
Max Water Temperature:				104
Alternator Specifications
Manufacturer:				Mecc Alte S.p.A (Italy)
Model:				ECO38-2SN/4
Rated Capacity:				200KVA
Winding:				100% Copper Wire
Frequency:				50HZ
Speed:				1500 RPM
Connecting Type:				3 Phase and 4 Wires, "Y" type connecting
Power Factor:				0.8
Protection Grade:				IP23
Exciter Type:				Brushless, self-exciting, with AVR
Insulation Class, Temperature Rise:				H/H
Alternator Warranty:				2 Year No Time Limited
Voltage Regulation:				≥±5%
Control System Specifications
Manufacturer:				DEEP SEA ELECTRONICS PLC (UK)
Model:				DSE6020
Type:				AMF Automatic Operation
Operation:				Automatic Start and Auto Mains (Utility) Failure Control
Alarm Protect:				Engine pre-heat, Current monitoring, ComprehensiveShutdown, Charge Failure
