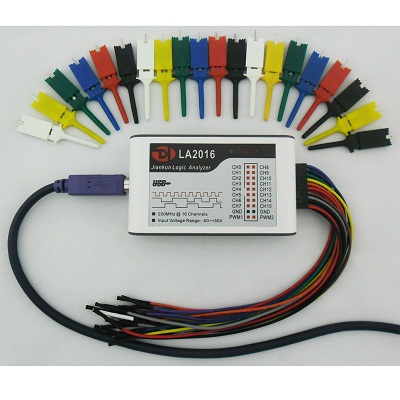

PC based LA2016 Logic Analyzer is with 16 Full Channels, 200M Sample rate, 10G maximum depth, multiple protocol decoder and two channels PWM signal generator for MCU, ARM and FPGA. It is suitable for waveform below 40M.
Key Hardware Features:
Sampling Mode: 200Msps
Physical Channels: 16
Adjustable Threshold ( +0.8V to +1.6V)
Voltage tolerance range (-50V ~ +50V)
Tri-Mode, Intelligent Compression
Auto-resetting Ground current Protection
Extra ESD protection
Channels are Reverse-Voltage protected
Channels are Over-Voltage protected
Hardware Storage: 1Gbit
10 hex/16 hex/2 hex/ASCII code format data
Sampling data & analytical data can be outputted.
Size: 95* 55* 23mm
