It is a flow control valve made up of one-way valve and baffler. The one-way valve will close when in forward flow and the baffler will regulate flow, while in reverse flow, it will not throttle. It i…
YD-V626 Solenoid Valve, Used for Foot Massage Machines
Dimension: 16 x 20 x25.4mm
Voltage: 12V DC
Coil resistance: 63Ω,
Press force: 300 to 2,000mmHg
Power: 2.3W
Duty cycle: 10 to 100%;
Total w…
YD-P1450 Solenoid Valve, Used for Coffee Machines
Dimension: 54 x 56 x 50mm
Voltage: 230V AC
Flow rate: 0 to 600cc/minute
Pressure: 0 to 14bar
Total weight: 450g
non rising soft seal gate valve
1) Product information: the gate valves supplied are mainly used for adjusting water,steam, oil, gas, and natural gas in chemical industries
2) Standards: AWWA, DIN33…
1.Simple and compact structure, light weight,90o rotation, quick and flexible opening and closing.
2.Eccentric structure allows reduced friction with seal ring and extended service life.
3.Sound sea…
Technical Data
DN40-DN1200mm PN1.0-1.6MPa
General Design:ISO 5752 / BS 5155 / API 609
Body: Ductile Iron
Seat: EPDM, NBR
Stem: Stainless Steel, Steel
Disc: Ductile Iron with Nickel Coating,Duct…
1.Not only applicable to liquid medium, but also applicable to gas medium;
2. Disc has two-way bearing and excellent sealing property;
3. Valve body has rubber seat and longer service life;
4. Easi…
Size DN50-DN1200
End flange ANSI B 16.1, EN 1092, AS 2129
Face to face EN558-1
Top flange ISO 5211
Normal pressure PN1.0/1.6/2.5MPa (150/300PSI)
Body CI / DI / WCB / SS disc-DI / CF8 / CF8M / C95…

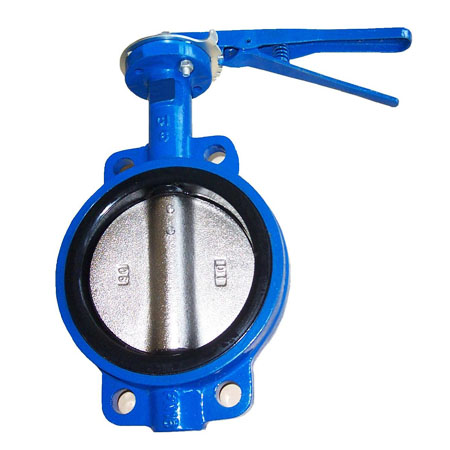

Wafer Type Butterfly Valve
Size:DN40-DN1200
End Flange:ANSI B 16.1 EN1092 AS2129
Face to Face:ANSI B 16.10
Top Flange:ISO 5211
Normal Pressure:DN40-DN600 PN1.0/1.6Mpa(150/200PSI)
…
