TUV standard DC1000V EV Charging cable construction
Posting date : Sep 21, 2022
Membership
Free Member Scince Aug 17, 2022
FOB Price
negotiate
Min. Order Quantity
500 Meters
Supply Abillity
1000000 Meters
Port
Guangzhou
Payment Terms
payment to delivery
Package
wood frame,roll
Keyword :
Category
Contact
luo
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
OMG'
HS-CODE
8522-
Package & Delivery Lead Time
Package
wood frame,roll
Delivery Lead Time
two weeks
Detailed Description

There are four charging modes for electric vehicles. In charging mode 4, one end of the cable is connected to the DC charging pile, and the other end is connected to the car charging port. The DC charging pile directly charges the car battery. This charging mode is faster, usually a car It only takes half an hour to fully charge the car. However, due to the need to transmit larger currents, the requirements for cables are higher.

The TUV certified cable produced by OMG, a well-known EV cable manufacturer in China, can carry a maximum current of 1000V and is suitable for cable selection in charging mode 4.

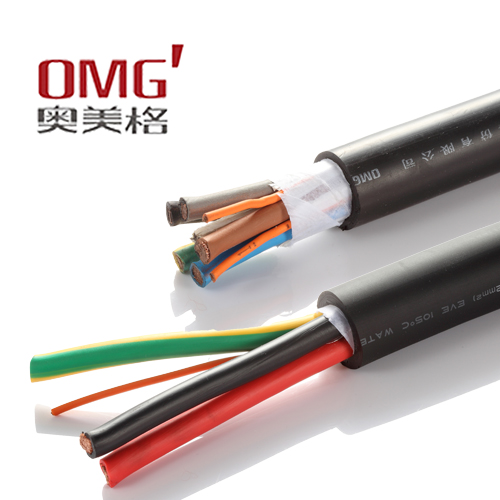

Product Details:

Reference Standard: IEC62893-4-1:2020

Conductor Material: Bare Copper

Insulation Material: TPE

Color: Brown, Blue, Yellow/Green

Filler Material:PP Cord

Tape Material: Non-woven fabrics

Sheath Material: TPE

Color:Black

Features:

Rated temperature:-25℃~70℃

Rated Voltage:AC450/750VDC1000V

Flame Test: VW-1 Test method Comply with UL 2556

Min:Bending Radius:≥6*OD

Dielectric Voltage: 2.5kVac/15min.No Breakdown

Low temperature impact:-40℃No cracks

Hot Shock: 150℃/1h No cracks

Oil Resistance:IRM902,IRM903,Gasoline 20h OD Variation≤15% No Cracks

Vehicle driver over:5kN8Km/h,220KPa, No Breakdown

Resistance to Acid and alkali:168h,Tensile Strength Variation ≤30%;Elongation≥100%

Environmental Requirements:Compliant with RoHS and REACH

If you want to recharge your car quickly or choose a DC charging pile for charging, try the OMG Europe DC cable, which is suitable for the CCS 2 charging system.


About OMG : https://www.omgevcable.com/
