99% separation rate PCB recycling machine for recycling precious metals from waste circuit boards

China [CN]

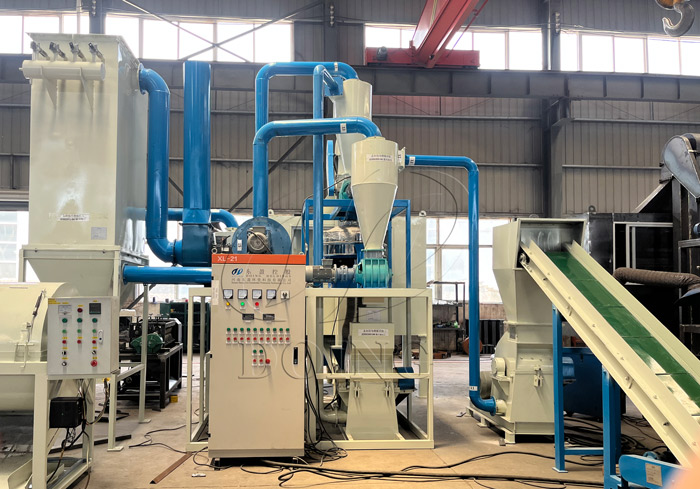

PCB recycling machine is also called PCB granulator machine, which is specially designed for processing and recycling waste circuit boards dismantled from household appliance to get mixed metals and non-metals.

The types of DOING PCB recycling machine:

DOING PCB recycling machine have different capacities: 100-150kg/h, 200-300kg/h, 400-500kg/h, 500-700kg/h, 800-1000kg/h,1.5-2t/h. And the configuration and equipment price are also different.

Customer can choose it based on the actual requirement. Besides, if customer want bigger processing capacity, DOING engineer can provide customize solution.

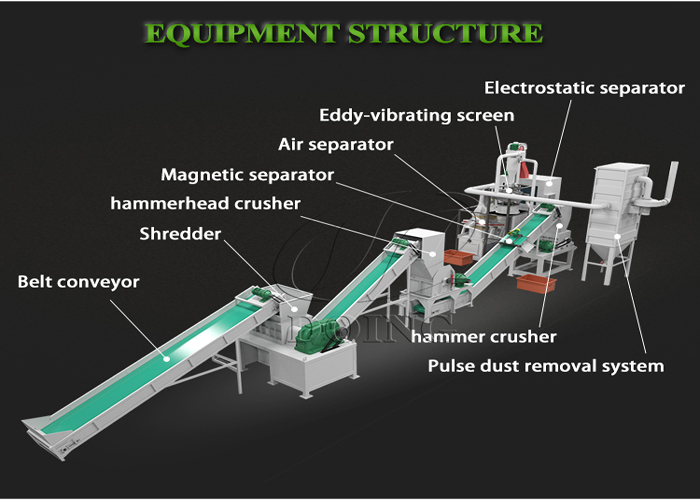

The struction of DOING PCB recycling machine:

As the above picture shows, the PCB recycling machine mainly contains crushing system, separating system and dust removal system.

The working process of DOING PCB recycling machine:

First, shredder and crusher will crush computer motherboard scrap into 4mm, and then eddy vibrating screen control the size of materials into 20-24 mesh. With the use of air separation machine and electrostatic separation machine, mixed metals and non-metals will be separated.

The environmental protection configuration of DOING PCB recycling machine:

The PCB recycling machine equips with cyclone dust collector and pulse dust collector. Cyclone dust collector can collect big size dust and pulse dust collector can collect small size dust below 0.4 nm. The working environment is clean.

The advantages of DOING PCB board recycling machine:

The blade material of double-shaft shredder is H13 alloy, which has high hardness, high toughness. And it will has longer using time than normal blade.

The blade material of crusher is 65Mn alloy, which has good toughness and high wear resistance.

2. High separation rate

Using air separator + electrostatic separator twice separating, the separation rate can be up to more than 99%.

3. Good effect on dust removal

Double dust removal system: cyclone dust collector + pulse dust collector. The dust removal rate can be over 99.5%.

Recycling circuit boards scrap is a very promising business. Are you still hesitate? Good projects won't wait for you all the time. Quickly contact us!
