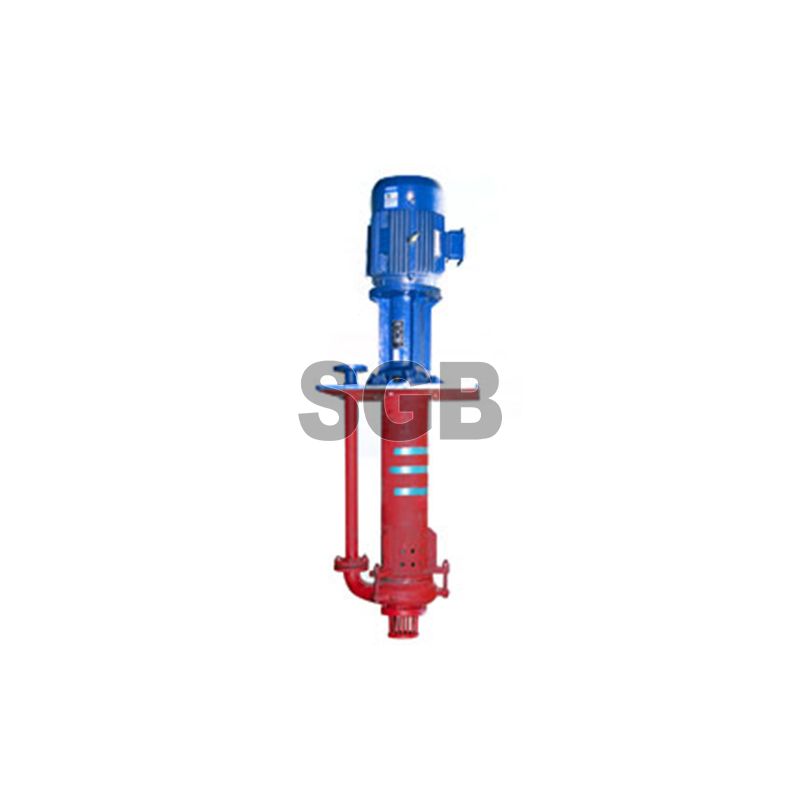

TL Series Vertical Pit Desulphurization Pump
China [CN] TL Series Vertical Pit Desulphurization Pump
Product Description
- Single stage, single suction, vertical centrifugal pump
- Wet parts such as casing, impeller, liner plate in anti-abrasion and corrosion-resistant high chrome cast iron alloy.
- For fluid of high concentration, inlet agitator is designed
-According to the depth of the pit, suction pipe can be added to the pump inlet.
- Hydraulic optimization design and stable operation
Technical Specifications
Performance and Main Technical Datas of TL Desulphurizations Pumps
Type | Allowable | Clear water | Particle max. Size handled (mm) | Pump weight (kg) | ||||
Q Capacity (m3/h) | H Head (m) | n Speed (r/min) | Max.eff. (%) | (NPSH)r (m) | ||||
150TL-A35 | 30 | 99-364 | 3.0-17.9 | 490-980 | 69.0 | / | 15 | 712 |
100TL-A34 | 45 | 74-293 | 5.5-36.8 | 700-1480 | 65.8 | / | 14 | 502 |
80TL-A45 | 110 | 59-286 | 12.5-81.6 | 700-1490 | 58.4 | / | 15 | 785 |
80TL-A36 | 45 | 50-201 | 7.3-45.5 | 700-1480 | 58.2 | / | 12 | 645 |
65TL-A40 | 45 | 30.2-142.8 | 10.2-62.6 | 700-1480 | 50.0 | / | 12 | 658 |
65TL-A30 | 18.5 | 18-98 | 5.9-34.7 | 700-1470 | 53.7 | / | 8 | 436 |
50TL-A45 | 55 | 21.9-117.3 | 10.4-78.4 | 700-1480 | 39.9 | / | 9.5 | 778 |
50TL-B40 | 30 | 15-65 | 8.6-58.3 | 700-1470 | 34.1 |
