Computer motherboard scrap recycling equipment

China [CN]

Computer motherboard scrap recycling equipment also called PCB recycling machine or PCB granulator machine, which is specially designed for processing and recycling computer motherboards or PCB boards dismantled from household appliance to get mixed metals and non-metals.

The types of DOING computer motherboard scrap recycling equipment:

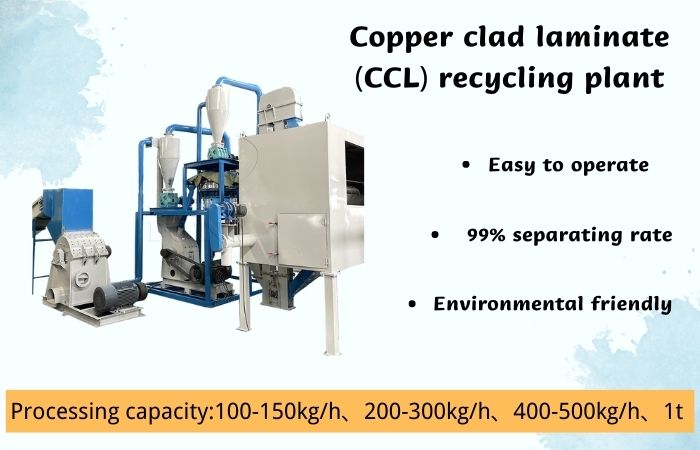

DOING computer motherboard scrap recycling equipment have different capacities: 100-150kg/h, 200-300kg/h, 400-500kg/h, 500-700kg/h, 800-1000kg/h,1.5-2t/h. And the configuration and equipment price are also different.

Customer can choose it based on the actual requirement. Besides, if customer want bigger processing capacity, DOING engineer can provide customize solution.

The working process of DOING computer motherboard scrap recycling equipment:

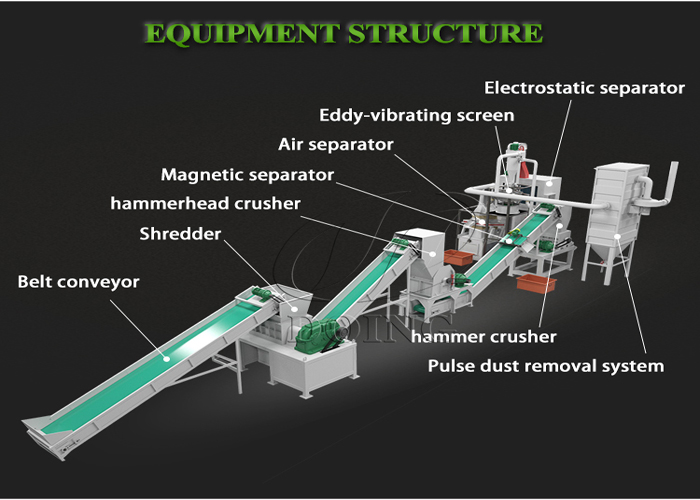

First, shredder and crusher will crush computer motherboard scrap into 4mm, and then eddy vibrating screen control the size of materials into 20-24 mesh. With the use of air separation machine and electrostatic separation machine, mixed metals and non-metals will be separated.

The environmental protection configuration of DOING computer motherboard scrap recycling equipment:

The computer motherboard scrap recycling equipment equippes with cyclone dust collector and pulse dust collector. Cyclone dust collector can collect big size dust and pulse dust collector can collect small size dust below 0.4 nm. The working environment is clean.

The advantages of DOING computer motherboard scrap recycling equipment:

1. Good in material
The blade material of double-shaft shredder is H13 alloy, which has high hardness, high toughness. And it will has longer using time than normal blade.
The blade material of crusher is 65Mn alloy, which has good toughness and high wear resistance.
2. High separation rate
Using air separator + electrostatic separator twice separating, the separation rate can be up to more than 99%.

3. Good effect on dust removal
Double dust removal system: cyclone dust collector + pulse dust collector. The dust removal rate can be over 99.5%.

Recycling computer motherboard scrap is a very promising business. Are you still hesitate? Good projects won't wait for you all the time. Quickly contact us!
